Power dividers and combiners distribute or combine RF signals across multiple paths while maintaining amplitude and phase balance.
They are critical in antenna arrays, test setups, and multi-channel communication systems.

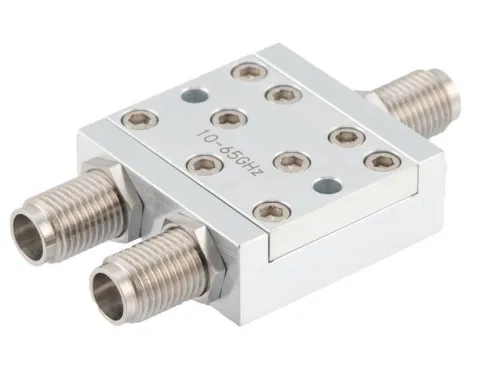

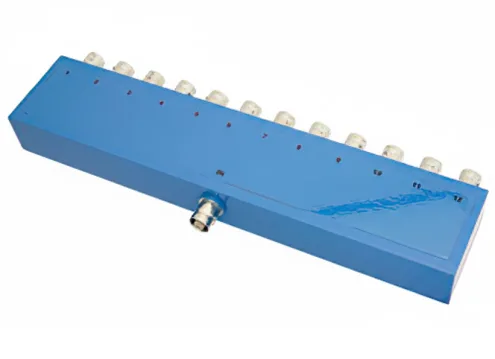

RF power dividers are passive components that split an input signal into two or more output signals with controlled amplitude and phase. They enable efficient signal distribution in RF and microwave systems without significant loss or distortion.
These devices are widely used in communication networks, radar systems, antenna arrays, and test equipment, providing reliable signal routing and optimized performance in both commercial and defense applications.
Key Types of RF Power Dividers
Wilkinson Power Dividers
Provide output isolation and maintain impedance matching.
Commonly used in test setups, amplifiers, and signal distribution networks.
Resistive Power Dividers
Simple, low-cost design for splitting signals.
Higher insertion loss but suitable for many measurement applications.
Hybrid Power Dividers
Split signals with specific phase relationships (e.g., 90° or 180°).
Used in balanced mixers, phased arrays, and modulators.
Applications of RF Power Dividers
Signal Distribution – route signals to multiple outputs in test and measurement systems.
Antenna Arrays – feed multiple antennas with balanced amplitude and phase.
Radar Systems – distribute signals for transmit/receive channels efficiently.
Communication Networks – manage signal splitting and combining in RF infrastructure.
Microwave Circuits – integrate into boards for splitting and combining functions.
RF power dividers provide precise signal splitting, phase control, and isolation. At RnDMarketplace.com, we offer high-performance RF power dividers engineered for reliability, efficiency, and advanced RF applications.
