2-Way Power Divider – 10 GHz to 65 GHz

Service Description

End Product

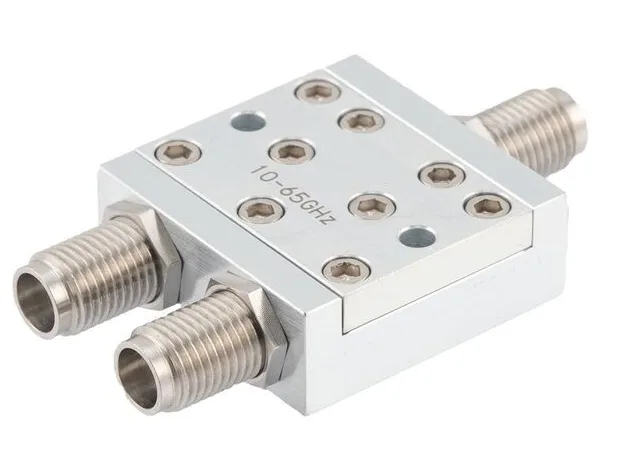

This high-frequency 2-way Wilkinson power divider is designed for broadband applications from 10 GHz to 65 GHz. It supports up to 10 Watts of continuous wave (CW) input power and offers robust RF performance with a maximum insertion loss of 4.5 dB and a minimum isolation of 15 dB.

The unit features 1.85mm female connectors and meets both RoHS and REACH compliance standards. Power dividers like this are commonly used to either combine multiple RF signals or evenly split a single signal into two outputs with consistent phase and amplitude.

Available in narrow and broad bandwidth variants with multiple connector options such as 2.92mm, BNC, N, and SMA, these components are vital for ensuring minimal signal degradation, low VSWR, and reliable system performance in demanding RF and microwave applications.

Specifications

• Number of Output Ports: 2
• Frequency Range: 10 GHz to 65 GHz
• Impedance: 50 Ohms

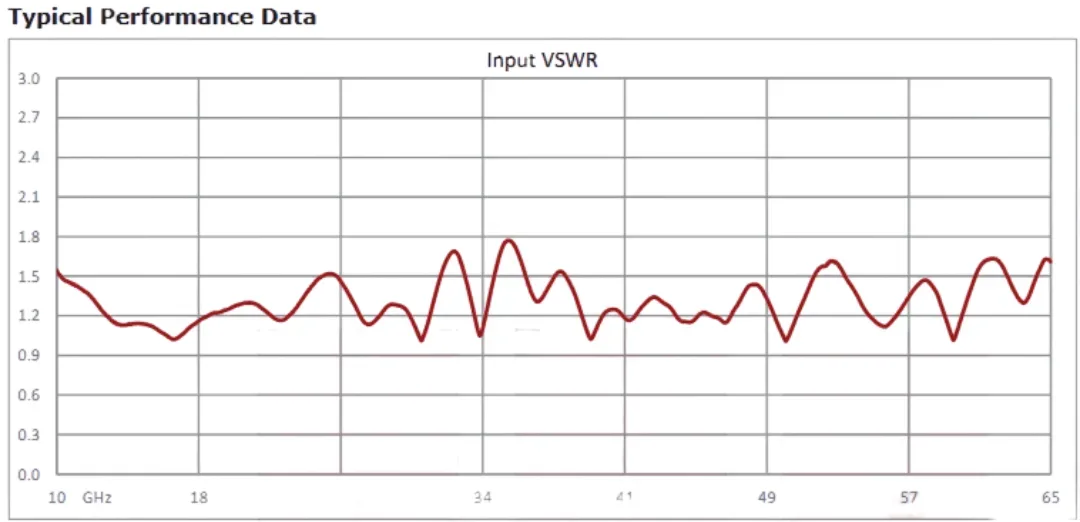

• Input VSWR: 2.2:1 (Typ), 2.5:1 (Max)
• Output VSWR: 2.2:1 (Typ), 2.5:1 (Max)

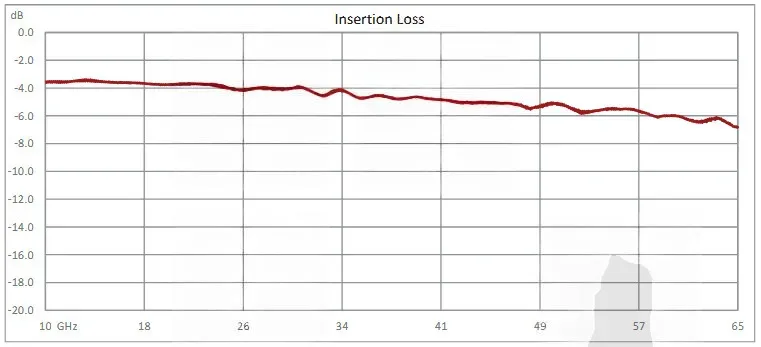

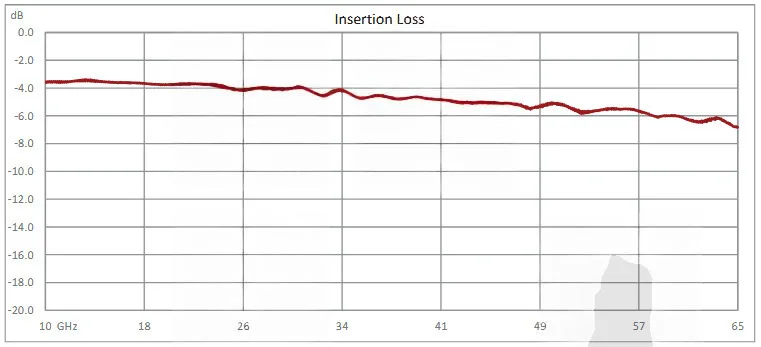

• Insertion Loss: 2.5 dB (Typ), 4.5 dB (Max)

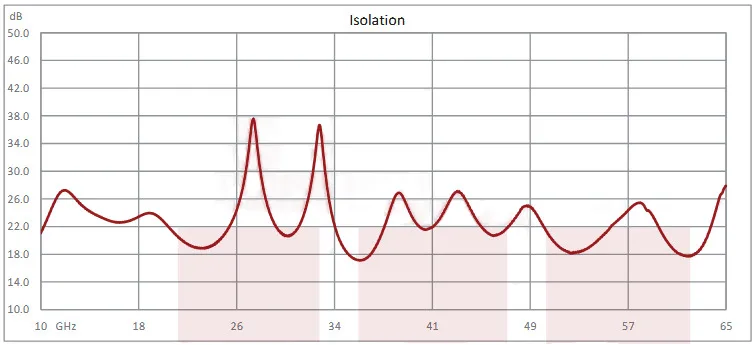

• Isolation: 15 dB (Min)
• Amplitude Balance: ±1.5 dB
• Phase Balance: ±15°
• Input Power (CW): 10 Watts

Specifications

• Length: 1.84 in [46.74 mm]
• Width: 1.00 in [25.40 mm]
• Height: 0.37 in [9.40 mm]
• Housing Material: Aluminum
• Finish/Plating: Aluminum (plated, typically anodized unless specified otherwise)

Configuration

• Package Type: Connectorized
• Input Connector: 1.85mm Female
• Output Connectors: 1.85mm Female

2-way power divider with 1.85mm interface, operating from 10 GHz to 65 GHz and rated for 10 Watts. Manufactured in ISO 9001:2008 certified facilities and available for immediate shipment.
