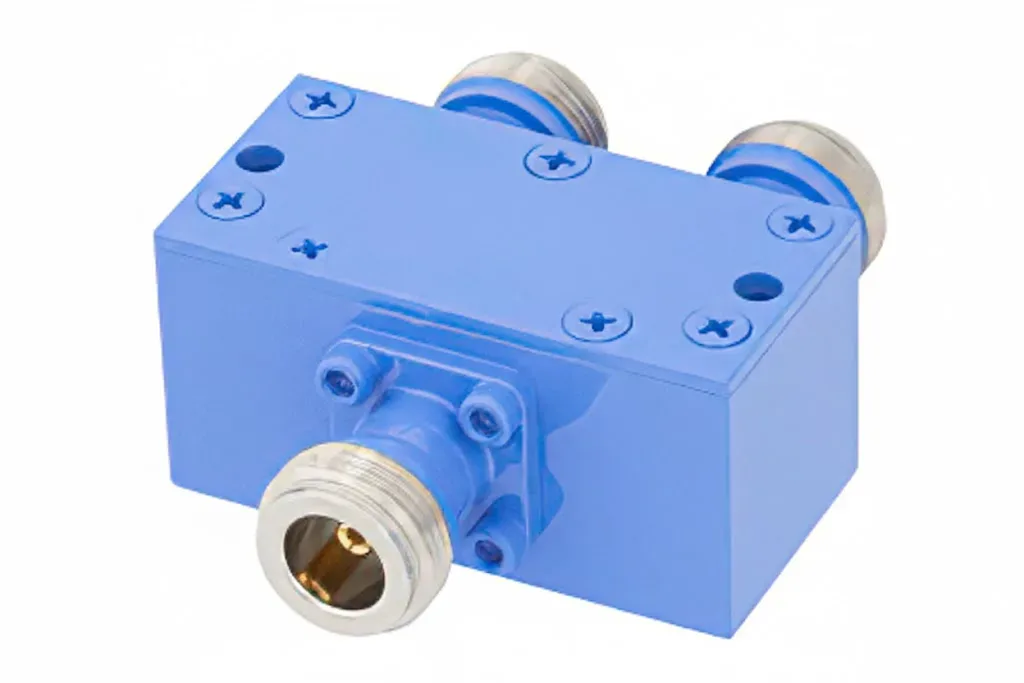

2-Way N-Type Wilkinson Power Divider, 4 GHz to 8 GHz, 30 Watts

Service Description

End Product

Achieve high-performance signal splitting and combining with this precision 2-way Wilkinson power divider. Operating across the 4 GHz to 8 GHz frequency range, this component is designed to split a single input into İki equal-magnitude and equal-phase outputs with exceptional efficiency. Its robust high-power design makes it an ideal solution for systems requiring low insertion loss and high signal integrity.

Housed in a durable connectorized package with N-type female interfaces, this divider provides a reliable 50 Ohm connection for demanding RF environments. With a 30-Watt power handling capacity and superior isolation, it ensures stable performance in both commercial and tactical communication infrastructures.

Key Features

• Wilkinson Design: Engineered for low insertion loss and excellent phase tracking between ports.
• High Power Handling: Rated for up to 30 Watts (CW) of input power.
• Excellent Isolation: Minimum 20 dB isolation between output ports to prevent cross-talk.
• Low VSWR: Maximum input and output VSWR of 1.3:1 ensures minimal signal reflection.
• C-Band Performance: Optimized for mid-range microwave frequencies (4-8 GHz).

Electrical Specifications

• Frequency Range: 4 to 8 GHz
• Impedance: 50 Ohms
• Insertion Loss: 0.7 dB (Max)
• Isolation: 20 dB (Min)
• Input/Output VSWR: 1.3:1 (Max)
• Input Power (CW): 30 Watts
• Number of Output Ports: 2

Applications

• SATCOM & Radar: Efficient signal management for satellite and radar ground stations.
• Military & Commercial Communications: Reliable power distribution for tactical and infrastructure radios.
• Test and Measurement: Signal splitting for multi-device calibration and lab analysis.
• Wireless Infrastructure: High-power signal routing for broadband communication networks.

Mechanical & Environmental

• Dimensions: 2.0 in x 1.0 in x 1.0 in (50.8 mm x 25.4 mm x 25.4 mm)
• Weight: 0.357 lbs (161.93 g)
• Connectors: N-Type Female (Input and 2 Outputs)
• Package Style: Connectorized
• Compliance: Fully REACH and RoHS compliant.

Logistics & Quality

Produced in a quality-certified facility, this 2-way power divider is part of a massive inventory of microwave components ready for immediate dispatch. Each unit is manufactured to exacting standards to ensure high-fidelity performance. Orders are processed for same-day global shipping to minimize project downtime and keep your operations on schedule.
