3 Way SMA Power Divider – 6 GHz to 18 GHz

Service Description

End Product

A wide range of power dividers are available to meet system requirements for combining multiple signals or splitting a single signal into equal outputs with consistent magnitude and phase. These resistive and Wilkinson power dividers offer excellent performance with low insertion loss, high isolation, and low VSWR. Options include both narrow and wide bandwidths, with connector types such as 2.92mm, 2.4mm, 1.85mm, BNC, N, and SMA.

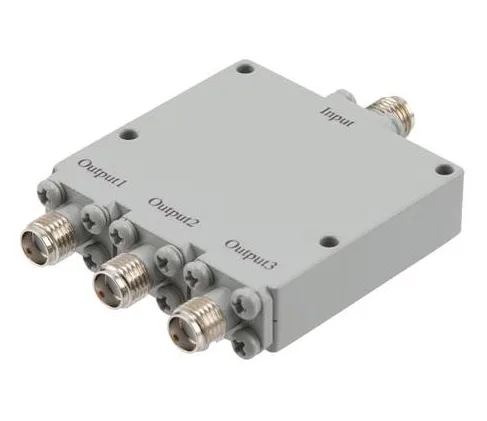

This 3-way power divider operates over the 6 to 18 GHz frequency range and supports up to 30 Watts of continuous wave (CW) power. It features a maximum insertion loss of 1 dB and a minimum isolation of 18 dB. The unit is equipped with SMA female connectors.

Key Features

• 3-way power divider
• Operates from 6 to 18 GHz
• Supports up to 30 Watts (CW) input power
• SMA female connectors for input and outputs
• Low insertion loss: less than 1 dB
• High isolation: greater than 18 dB

This compact 3-way power divider is designed for RF and microwave applications from 6 GHz to 18 GHz. It features SMA female connectors and supports up to 30 Watts continuous wave (CW) input power with the following performance characteristics:

• Frequency Range: 6 to 18 GHz
• Impedance: 50 Ohms
• VSWR:
  • Input: 1.3:1 (typ.), 1.5:1 (max)
  • Output: 1.25:1 (typ.), 1.4:1 (max)
• Insertion Loss: 0.5 dB (typ.), 1 dB (max)
• Isolation: 18 dB (min), 22 dB (typ.)
• Amplitude Balance: 0.4 dB (typ.), 0.6 dB (max)
• Phase Balance: 4° (typ.), 6° (max)
• Nominal Power Splitting: 4.8 dB
• Input Power (CW): 30 Watts
• Reverse Power (CW): 1 Watt
• Peak Input Power: 300 Watts

Specifications

Size

• Length: 1.4 in [35.56 mm]
• Width: 1.52 in [38.61 mm]
• Height: 0.39 in [9.91 mm]
• Weight: 0.11 lbs [49.9 g]

Housing Material and Plating

• Aluminum

Configuration

• Package Type: Connectorized
• Input Connector: SMA Female
• Output Connectors: SMA Female

Environmental Specifications

Temperature

• Operating Range: -40°C to +85°C
• Storage Range: -50°C to +105°C

Humidity

• 100% RH at 35°C
• 95% RH at 40°C

Shock

• 20G for 11 ms half sine wave, 3 axis both directions

Vibration

• 25g RMS (15° @ 2 kHz) endurance, 1 hour per axis

Altitude

• 30,000 ft (Epoxy Sealed, Controlled Environment)

3 Way SMA Power Divider from 6 GHz to 18 GHz rated at 30 Watts is available for same day shipment for both domestic and international orders. Our RF, microwave, and millimeter wave products maintain a 99.4% availability rate and are part of one of the broadest selections in the industry.
