12 Way Power Divider – 2MHz to 500MHz

Service Description

End Product + Design Documents + Production Documents

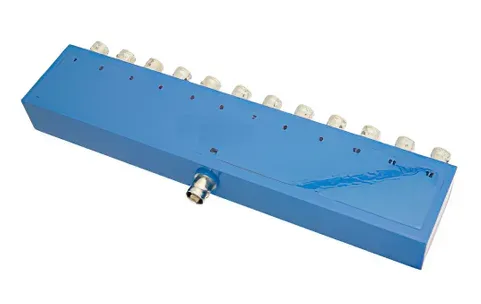

This 12-way RF power divider features a reactive design and operates over a frequency range of 2 MHz to 500 MHz. It has a 50 Ohm impedance, supports up to 1 Watt input power, and is equipped with one BNC female input and twelve BNC female output ports. The design offers a maximum input VSWR of 1.5:1, minimum port-to-port isolation of 20 dB, and minimal insertion loss. Suitable for signal distribution and test setups in RF systems.

Features

• 12-Way Power Divider
• Reactive Design
• 2 to 500 MHz Frequency Range
• Max Power 1 Watt (CW)
• Insertion Loss < 3 dB
• Isolation > 20 dB

Specifications

• Frequency Range: 2 – 500 MHz
• Impedance: 50 Ohms
• Input VSWR: 1.5:1
• Output VSWR: 1.5:1
• Insertion Loss: 3 dB
• Isolation: 20 dB
• Input Power (CW): 1 Watts

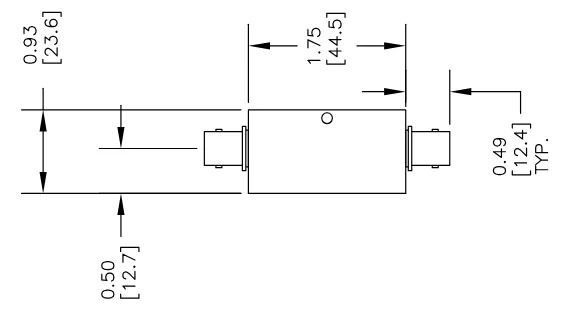

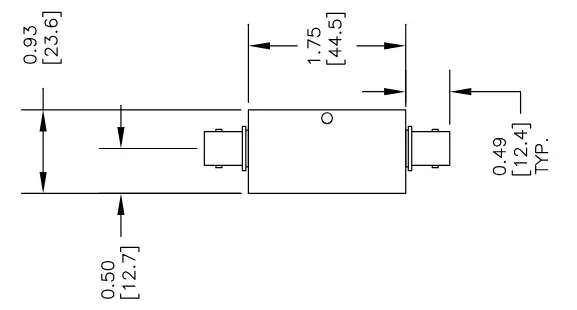

• Length: 8.5 in [215.9 mm]
• Width: 1.75 in [44.45 mm]
• Height: 0.93 in [23.62 mm]
• Weight: 1.216 lbs [551.57 g]

This 12-way power divider operates across a frequency range of 2 MHz to 500 MHz and is rated for up to 1 Watt of input power. It features a 50 Ohm impedance with BNC female connectors on both input and output ports. Designed with a reactive topology, it provides reliable signal splitting with low insertion loss, a maximum input VSWR of 1.5:1, and a minimum isolation of 20 dB between ports. Ideal for RF signal distribution in test and measurement environments.
