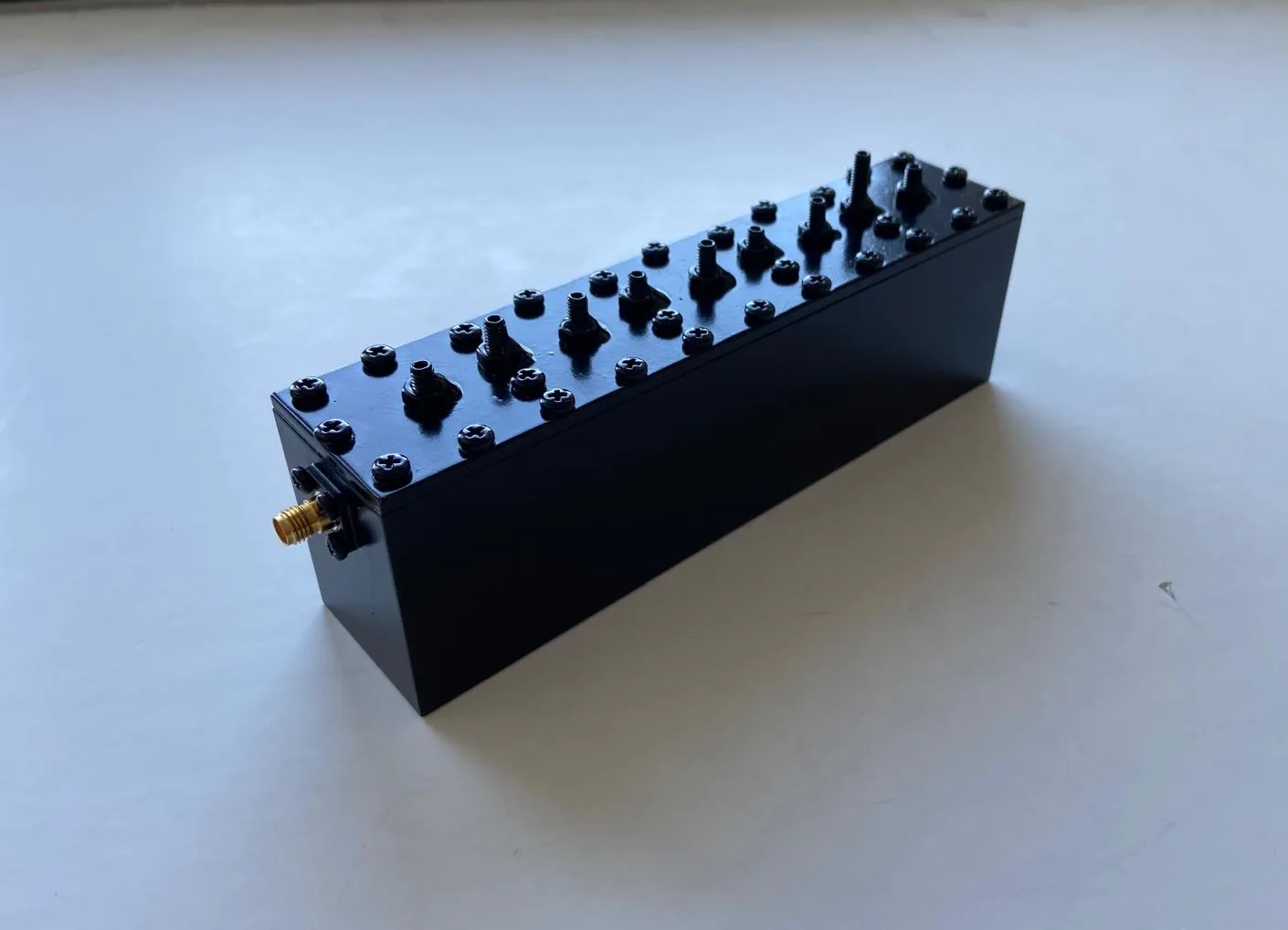

1090 MHz RF Cavity Filter
162 Views
-
Delivery Time15-30 Days
-
English levelProfessional
Service Description
Simulations / Production Files
This offer includes complete simulation and production-ready files for a 1090 MHz RF cavity filter — ideal for professionals who need a high-performance, ready-to-manufacture design.
Whether you’re working in aerospace, telecommunications, or defense, this filter is designed to meet your needs for high selectivity, low insertion loss, and robust mechanical construction.
What You’re Buying
- Full 3D EM Simulations (CST format)

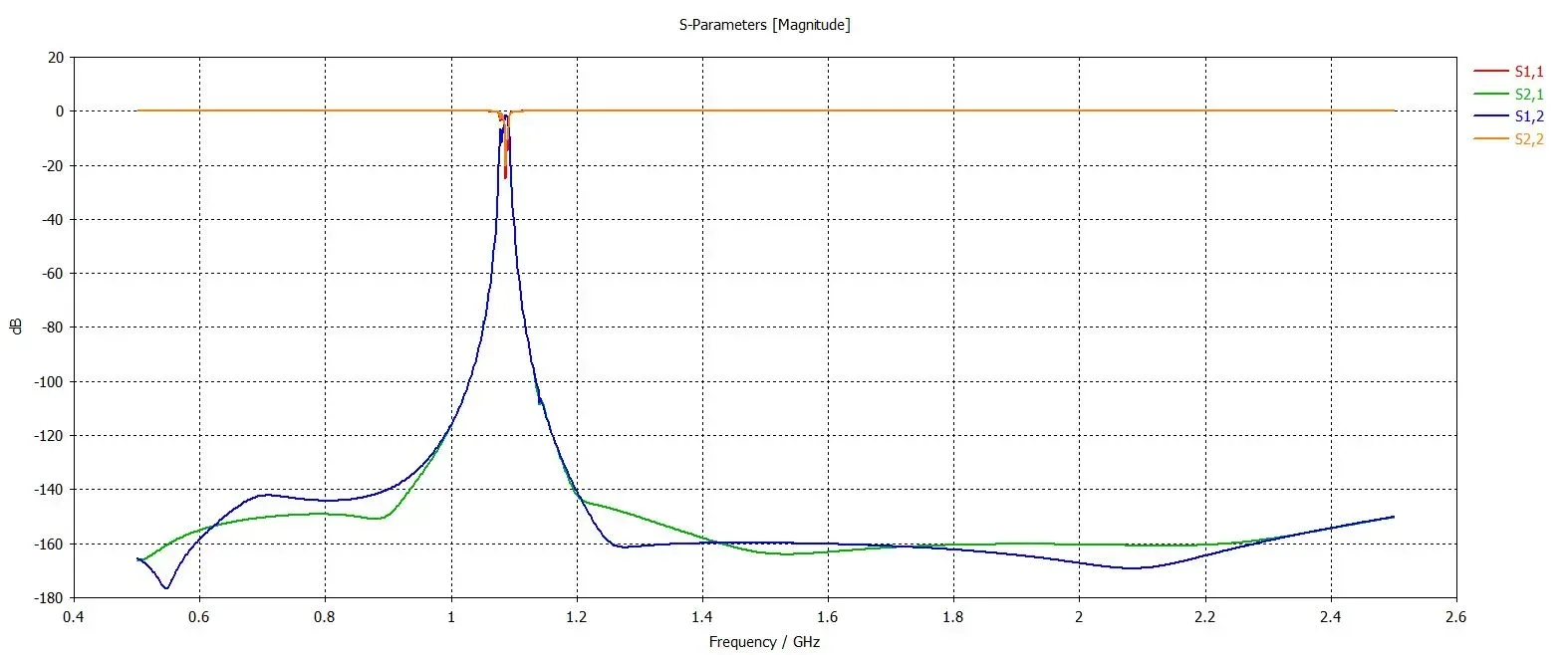

- S-Parameters (S21, S11 — Touchstone file included)
- Complete Mechanical Drawings (DXF, STEP, PDF)
- Bill of Materials (BOM) for components and materials
- Filter Specs Sheet (Center freq., BW, IL, RL, dimensions)
| Parameter | Parameter | Frequency [MHz] | Min | Typ. | Max | Unit |
|---|---|---|---|---|---|---|
| Pass Band | Center Frequency | 1090 | – | 1090 | – | MHz |
| Pass Band | Insertion Loss | 1086-1094 | – | 1.6 | 2 | dB |
| Pass Band | VSWR | 1086-1094 | – | 1.4 | 1.8 | :1 |
| Stop Band, Lower | Insertion Loss | DC-1060 | 75 | 90 | – | dB |
| Stop Band, Lower | VSWR | DC-1060 | – | 20 or higher | – | :1 |
| Stop Band, Upper | Insertion Loss | 1115-3000 | 75 | 90 | – | dB |
| Stop Band, Upper | VSWR | 1115-3000 | – | 20 or higher | – | :1 |
You’re not buying a physical filter. You are purchasing the complete engineering package: Simulations, performance data, and production files — everything needed to manufacture the filter yourself or send to a supplier.
