4-Section GPS L1 Bandpass Filter (1.565 GHz – 1.585 GHz)

Service Description

End Product

This 4-section bandpass filter is a high-performance solution specifically engineered for GPS L1 band applications. Operating within a precise frequency range of 1.565 GHz to 1.585 GHz, it provides a focused 20 MHz passband to ensure signal integrity and minimize interference in critical navigation and communication systems.

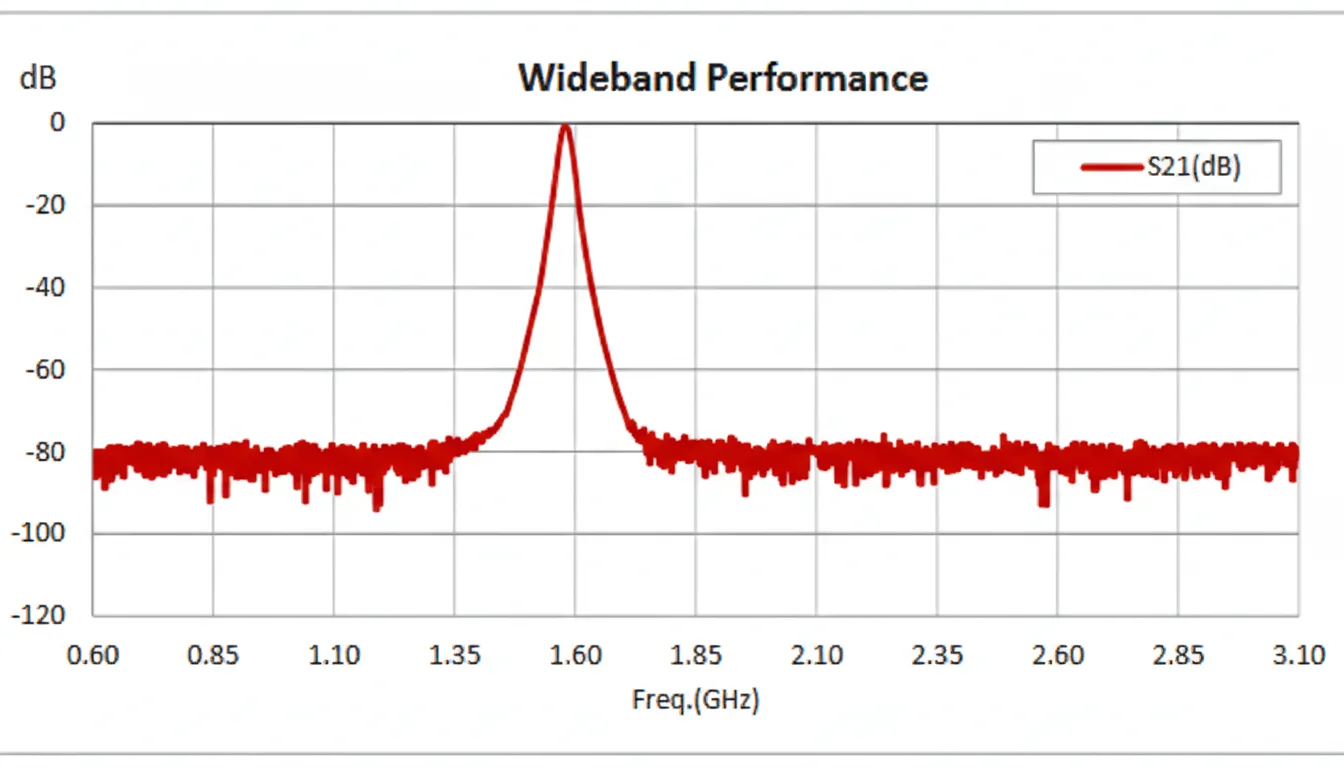

Utilizing an advanced design, this filter delivers exceptional selectivity and out-of-band rejection. It achieves a robust 50 dB rejection at 1.475 GHz and 1.675 GHz (approximately 90 MHz from the band edges), effectively isolating the desired signals from surrounding noise. With a typical insertion loss of only 1.5 dB, it maintains high efficiency for sensitive RF front-ends.

Key Technical Specifications

Frequency Range: 1.565 GHz – 1.585 GHz
Passband Width: 20 MHz
Design: 4-Section Combline

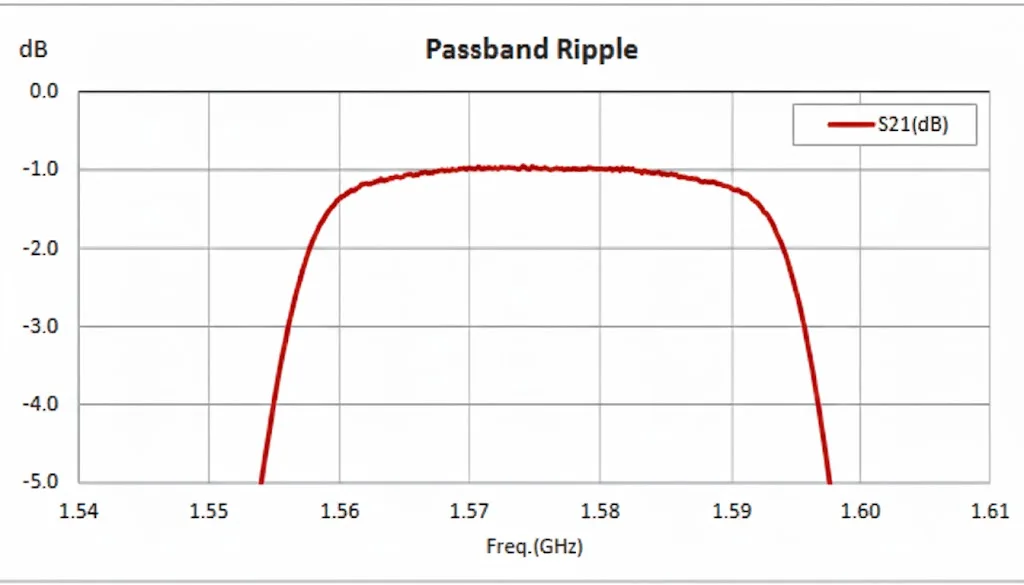

Insertion Loss: 1.5 dB Typical
Rejection: 50 dB at 1.475 GHz / 1.675 GHz
Input Power (CW): 5 Watts Max
VSWR: 1.5:1 Max
Impedance: 50 Ohms
Connector Type: SMA Female (Both Ports)
Dimensions: 1.55″ L x 2.25″ W x 0.53″ H
Weight: 0.15 lbs [68.04 g]

Applications

GPS L1 Band Filtering: Ideal for precision timing and positioning systems.
Signal Isolation: Protection against out-of-band interference in dense RF environments.
Satellite Communications: Enhancing signal-to-noise ratios in downlink receivers.
RF Prototyping: A reliable component for laboratory testing and microwave system integration.

Reliability & Availability

Housed in a durable connectorized module, this bandpass filter is built for consistent electrical performance and long-term reliability. Its compact form factor and standard SMA female connectors allow for easy integration into existing RF architectures. These filters are maintained in stock to support immediate deployment for both domestic and international projects, ensuring your high-frequency systems operate with maximum precision and minimal downtime.
