2.5GHz to 2.7GHz – Bandpass Filter

Service Description

End Product Files

• Passband: 200 MHz (from 2.5 GHz to 2.7 GHz)
• Design: 4-section combline filter
• Rejection:
  • – ≥ 50 dB at 1.7 GHz
  • – ≥ 50 dB at 3.5 GHz
  • (Approximately 800 MHz away from band edges)

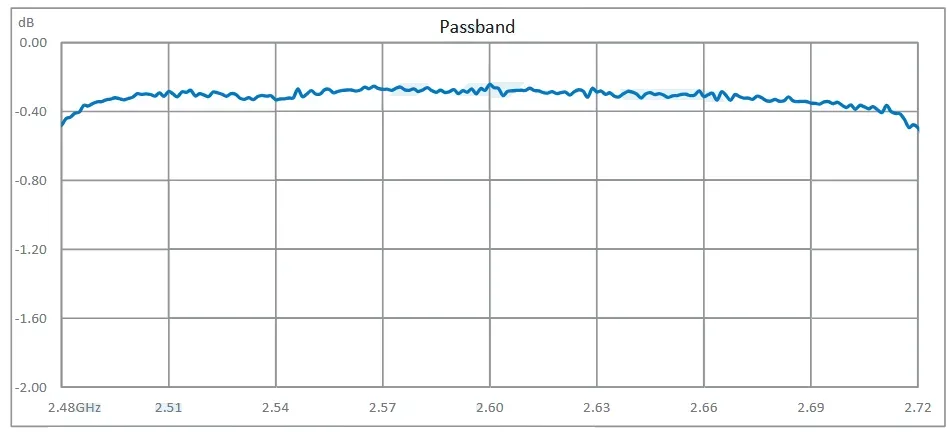

• Insertion Loss: Typically 1 dB
• Connectors: SMA Female on both ports

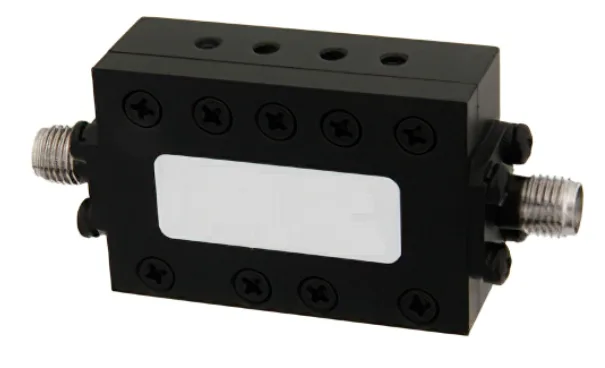

This four-section bandpass filter is designed for applications requiring selective frequency transmission within the 2.5 to 2.7 GHz range. With a 200 MHz passband, the filter utilizes a combline structure to deliver sharp performance and consistent signal integrity.

It offers excellent rejection, with a minimum of 50 dB attenuation at 1.7 GHz and 3.5 GHz—approximately 800 MHz from either band edge. The typical insertion loss is just 1 dB, ensuring minimal signal degradation within the passband.

The filter is equipped with SMA female connectors, making it suitable for a wide range of RF systems that demand compact size, high selectivity, and robust performance.

• Impedance: 50 Ohms
• Passband VSWR: 1.5:1
• Input Power (CW): Maximum 5 Watt
• Length: 1.5 in [38.1 mm]
• Width: 1 in [25.4 mm]
• Height: 0.53 in [13.46 mm]
• Weight: 0.15 lbs [68.04 g]
