4.4 GHz to 4.8 GHz Nine-Section Bandpass Cavity Filter

Service Description

End Product

This high-performance bandpass filter is engineered with a nine-section architecture, specifically optimized for peer-to-peer (P2P) and public safety frequency management. Operating within a 400 MHz bandwidth (from 4.4 GHz to 4.8 GHz), the unit utilizes a combline design to deliver exceptional signal isolation, providing a minimum rejection of 55 dB at 5.0 GHz and 60 dB at 3.7 GHz. With a maximum insertion loss of only 1.25 dB, it ensures superior signal integrity for critical communication links.

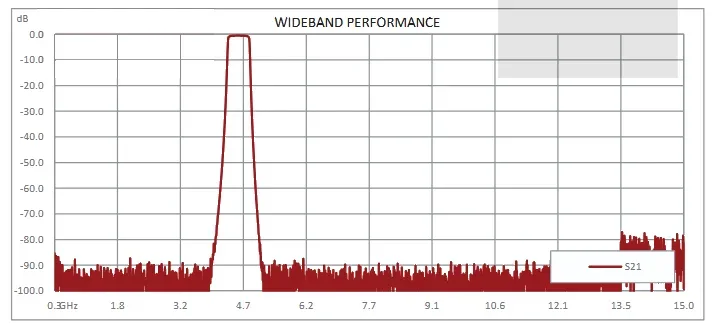

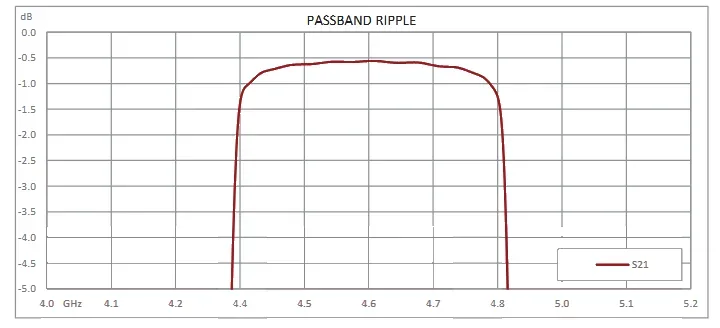

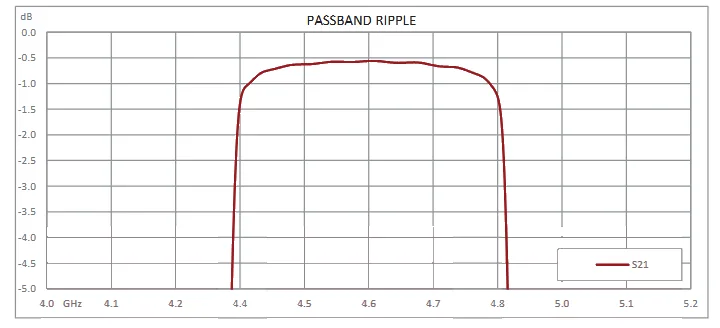

Electrical Performance Specifications

• Frequency Range: 4.4 GHz – 4.8 GHz (400 MHz Passband)
• Design Type: Nine-section combline
• Insertion Loss: 1.25 dB maximum (1 dB typical)
• Input Impedance: 50 Ohms
• VSWR: 1.43:1 maximum
• Signal Rejection:
  • Minimum 55 dB (5.0 GHz to 5.3 GHz)
  • Minimum 60 dB (2.2 GHz to 3.7 GHz)
•  Power Handling: 5 Watts Continuous Wave (CW)

Mechanical and Environmental Data

• Connector Interface: SMA Female to SMA Female
• Housing Dimensions: 3.0 in [76.2 mm] x 0.75 in [19.05 mm] x 0.53 in [13.46 mm]
• Unit Weight: 0.08 lbs [36.29 g]
• Configuration: Connectorized package style
• Operating Temperature: -30°C to +70°C

Typical Applications

This robust cavity filter is ideal for integration into high-reliability systems, including Satellite Communications, 5G cellular bands, and advanced radar equipment. Its high-rejection characteristics make it a vital component for filtering interference in public safety networks and broadband wireless infrastructure.
