36dB – 2 GHz to 6 GHz – Broadband Amplifier

Service Description

End Product + Design Documents + Production Documents

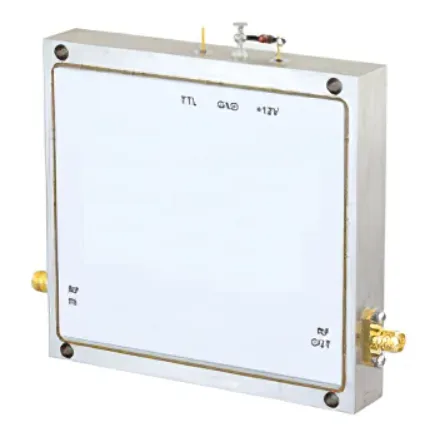

This broadband coaxial power amplifier operates over a wide frequency range from 2.0 GHz to 6.0 GHz, making it suitable for various RF applications. It delivers a typical output power of 34 dBm at the 1 dB compression point (P1dB) and provides approximately 36 dB of small signal gain with a typical gain flatness of ±1.5 dB across the band.

The amplifier is powered by a single positive DC supply and is designed for unconditional stability. It functions reliably within a temperature range of -30°C to +70°C. Additionally, the unit is hermetically sealed, ensuring robust protection in demanding operating environments.

Features

• 2.0 to 6.0 GHz Frequency Range
• P1dB: 34 dBm typ
• Small Signal Gain: 36 dB typ
• Gain Flatness: ±1.5 dB typ
• 50 Ohm Input and Output Matched
• -30 to +70°C Operating Temperature
• Unconditionally Stable
• Single DC Positive Supply
• Built-in DC Voltage Regulator

Applications

• Laboratory Applications
• R&D Labs
• Test Instrumentation
• Military & Space
• Communication Systems
• Satellite Communications
• Wireless Communications
• Unmanned Systems
• Microwave Radio Systems
• Low Noise Amplifier
• General Purpose Amplification
• RF Front Ends

Specifications

Frequency Range: 2 6 GHz

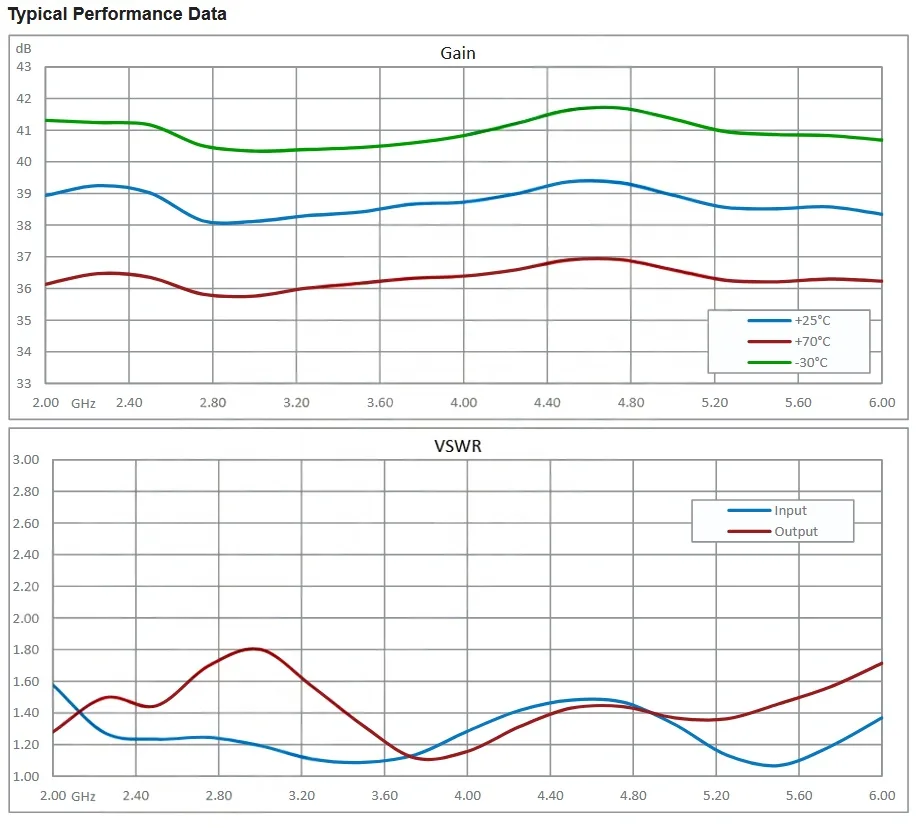

Gain: 34 – 36 dB
Gain Flatness: ±1.5, ±2 dB
Output at 1 dB Compression Point: 33 – 34 dBm
Noise Figure: 6 – 7 dB.
Input VSWR: 1.8:1, 2:01
Output VSWR: 1.8:1, 2:01
Switching Time: 10,000 nsec
TTL Control: High +5V = On, Low 0V = Off
Operating DC Voltage 1: 12 – 15 Volts.
Operating DC Current: 2,200 – 2,400 mA
Operating Temperature Range: (OTR) -30 – 70 °C

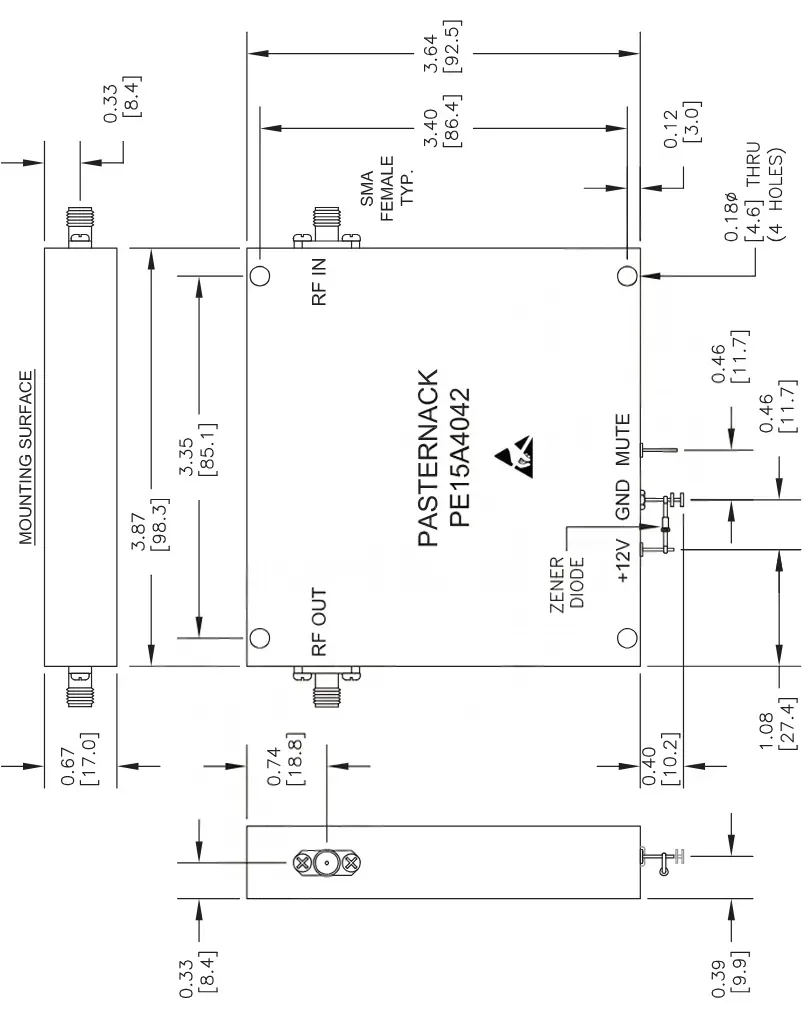

Length: 3.87 in [98.3 mm]
Width: 3.64 in [92.46 mm]
Height: 0.67 in [17.02 mm].
Weight: 0.724 lbs [328.4 g]
Input Connector: SMA Female
Output Connector: SMA Female
