200 MHz to 2.5 GHz Broadband Gain Block Amplifier

Service Description

End Product

Boost your system’s signal strength with this high-performance broadband gain block amplifier. Covering a versatile frequency range from 200 MHz to 2.5 GHz, this connectorized solution is designed to provide consistent amplification for a wide variety of RF and microwave applications. With its linear performance and integrated design, it serves as a reliable gain stage for both laboratory and field-deployed systems.

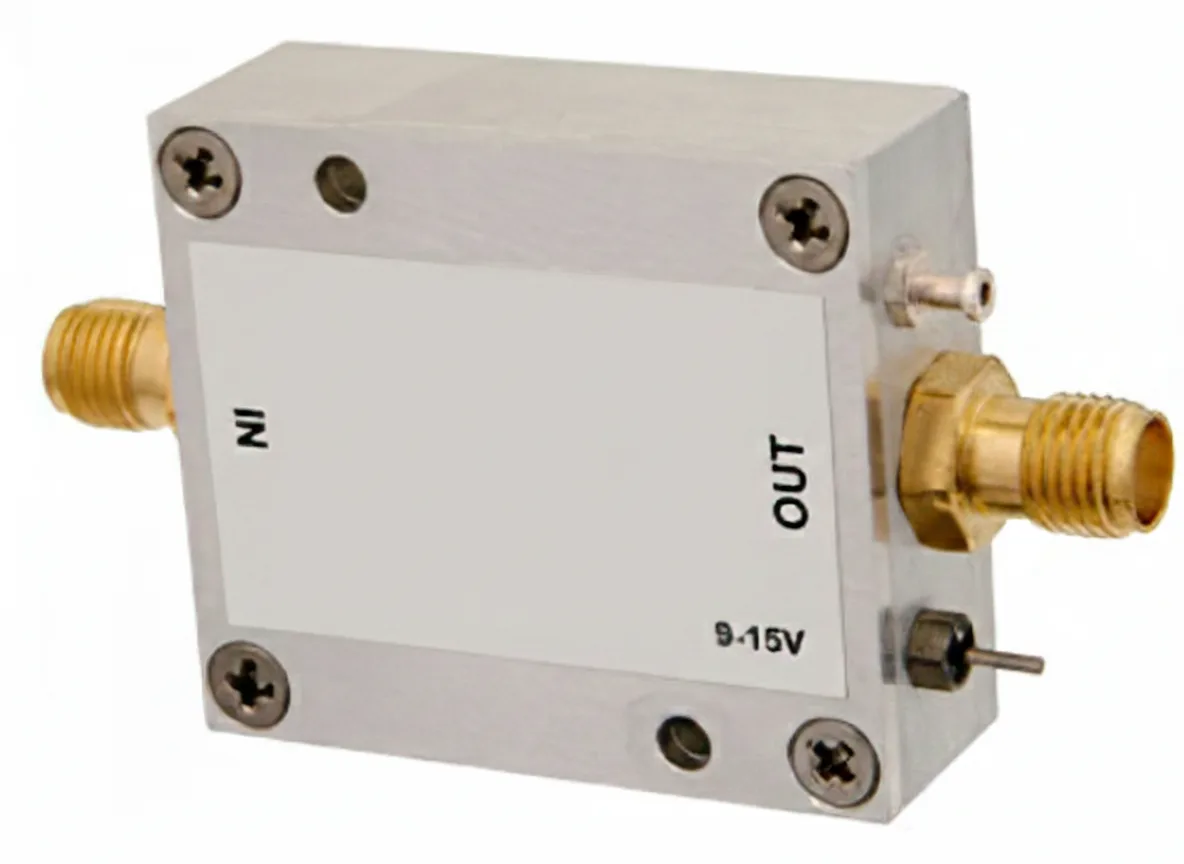

Encased in a compact, durable housing, this amplifier features 50 Ohm SMA female connectors for easy integration into existing coaxial setups. Providing a robust 15 dBm at the 1 dB compression point (P1dB​), it delivers the power and clarity needed for critical signal chains without compromising signal integrity.

Key Features

• Broadband Versatility: Seamlessly operates across a wide spectrum from 200 MHz up to 2.5 GHz.
• Stable Gain: Delivers a typical gain of 19 dB to 22 dB to ensure effective signal recovery and transmission.
• Connectorized Convenience: Equipped with industry-standard SMA Female interfaces for secure and simple connectivity.
• Flexible Powering: Supports a wide DC operating voltage range from 9 to 15 Volts.
• Compact Integration: Designed with a small footprint and solder pin DC bias for streamlined installation in dense environments.

Electrical Specifications

• Frequency Range: 0.2 to 2.5 GHz
• Typical Gain: 19 dB
• Output at 1 dB Compression (P1dB​): 15 dBm
• Operating DC Voltage: 9 to 15 Volts
• Maximum DC Current: 120 mA
• Impedance: 50 Ohms

Applications

• General Purpose Amplification: Ideal for boosting signals in R&D and prototyping.
• Communication Systems: Enhancing signal levels in wireless infrastructure and tactical radios.
• Test and Measurement: Providing a reliable gain stage for bench-top testing and signal analysis.
• Receiver Chains: Improving system sensitivity and signal-to-noise ratios.

Mechanical & Environmental

• Dimensions: 2.18 in x 1.18 in x 0.49 in (55.37 mm x 29.97 mm x 12.45 mm)
• RF Connectors: SMA Female (Input and Output)
• DC Bias: Solder Pin
• Operating Temp: -10°C to +65°C
• Compliance: Fully RoHS compliant.
