50 MHz to 1,000 MHz Gain Amplifier

Service Description

End Product

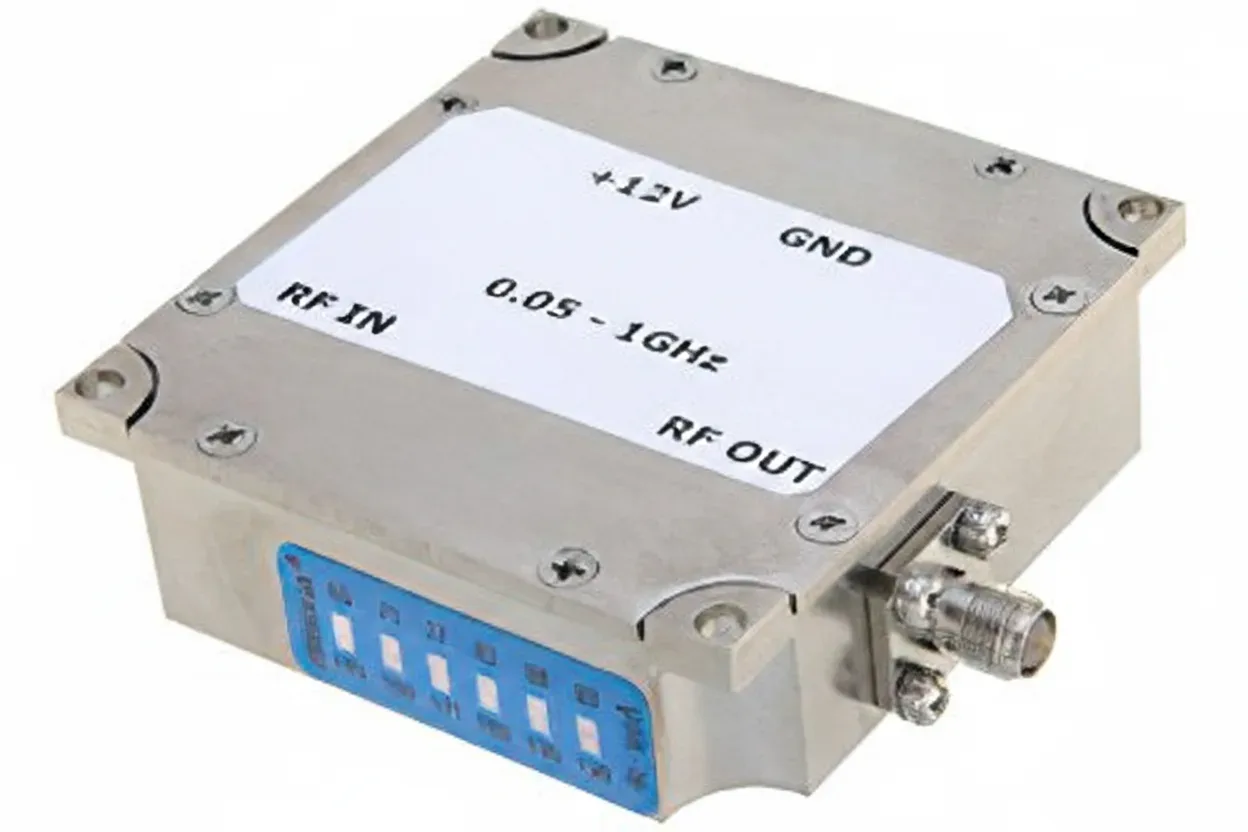

Enhance your signal strength with this high-performance connectorized gain block RF amplifier. Engineered for versatility across the 50 MHz to 1,000 MHz frequency range, this Low Noise Amplifier (LNA) provides a stable 21 dB gain, making it an essential component for boosting weak signals in various RF environments.

Housed in a robust connectorized package with 50 Ohm SMA female interfaces, this amplifier ensures reliable performance and easy integration into existing coaxial systems. With an output power of 12 dBm at the 1 dB compression point (P1dB​), it delivers a clean, linear boost for your most critical high-frequency applications.

Key Features

• High Gain Performance: Provides a typical gain of 21 dB for effective signal amplification.
• Broadband Coverage: Supports a wide frequency spectrum from 50 MHz to 1.0 GHz.
• Low Noise Design: Optimized as a gain block/LNA to maintain signal integrity.
• Precision Connectivity: Equipped with industry-standard SMA Female connectors for input/output and solder pins for DC bias.
• Industrial Reliability: Built to operate in demanding temperatures ranging from -30°C to +70°C.

Electrical Specifications

• Frequency Range: 50 to 1,000 MHz
• Typical Gain: 21 dB
• Output at 1 dB Compression (P1dB​): 12 dBm
• Input/Output VSWR: 2.0:1 (Max)
• Operating DC Voltage: 12 Volts
• Maximum DC Current: 150 mA
• Impedance: 50 Ohms

Applications

• Test and Measurement: Signal amplification for laboratory benches and automated test setups.
• Communication Systems: Boosting VHF/UHF signals in wired and wireless infrastructure.
• General Purpose R&D: Versatile gain stage for prototyping and system integration.
• Receiver Front-Ends: Enhancing sensitivity in diverse RF receiver chains.

Mechanical & Environmental

• Dimensions: 2.36 in x 2.36 in x 0.75 in (59.94 mm x 59.94 mm x 19.05 mm)
• RF Connectors: SMA Female (Input and Output)
• DC Bias: Solder Pin
• Operating Temp: -30°C to +70°C
• Compliance: Fully RoHS compliant.

This gain block amplifier is part of an extensive inventory of high-grade microwave components. Manufactured to exacting standards, it is ready for immediate dispatch to minimize project downtime. All orders are processed for same-day global shipping to ensure your equipment is delivered exactly when needed.
