1.75 dB NF Low Noise Amplifier – 1GHz to 12GHz

Service Description

This low noise amplifier operates over a wide frequency range of 1 GHz to 12 GHz using GaAs HBT MMIC technology. It provides high dynamic range with typical performance at 8 GHz including 16 dB small signal gain, 1.75 dB noise figure, up to +17 dBm output power at P1dB, and +31 dBm output IP3. The amplifier operates with a +6V and -5V DC supply and features internally matched 50-ohm input/output ports with DC blocking.

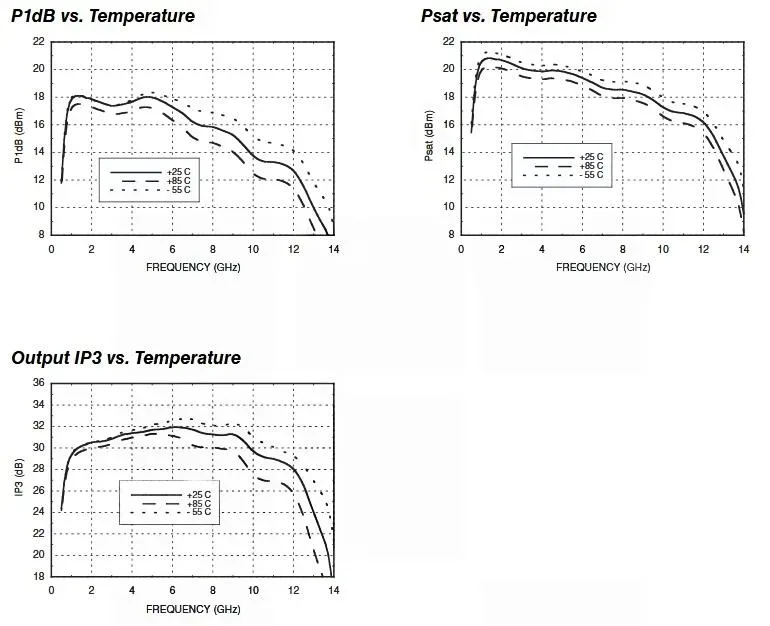

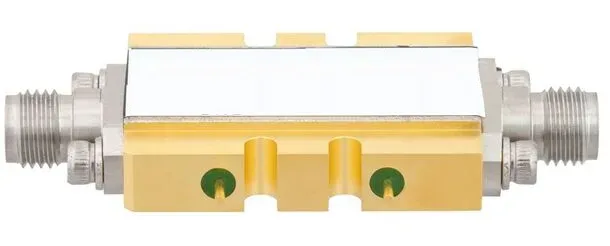

Housed in a hermetically sealed drop-in package with field-replaceable SMA connectors, this module is designed for rugged environments, meeting MIL-STD-883 standards for Hermeticity and Temperature Cycling. It supports an operating temperature range of -55°C to +85°C and is ideal for broadband applications requiring consistent, high-performance amplification across a wide frequency span.

Features

• Low Noise Amplifier
• Wide Frequency Band
• Highly Linear GaAs HBT MMIC Technology
• Gain 16 dB
• Noise Figure 1.75 typ
• High Output IP3 +31 dBm
• P1dB up to +17 dBm
• Hermetically Sealed Module
• Mil Spec Compliant
• Field Replaceable SMA Connectors
• -55°C to +85°C Operating Temperature

Specifications

Frequency Range: 1 – 12 GHz
Small Signal Gain: 16 dB
Output at 1 dB Compression Point: +17 dBm
Noise Figure: 1.75 dB
Operating DC Voltage: 6 Volts
Operating DC Current: 60 mA
Operating Temperature Range: -55 – +85 °C

Size

• Length: 1.14 in [28.96 mm]
• Width: 1.9 in [48.26 mm]
• Height: 0.56 in [14.22 mm].
• Weight: 0.09 lbs [40.82 g]

This low noise amplifier features a noise figure of 1.75 dB, operates across a wide frequency range from 1 GHz to 12 GHz, and delivers 16 dB typical gain. It supports up to +17 dBm output power at the 1 dB compression point (P1dB) and comes equipped with SMA connectors. Designed for high-performance RF and microwave systems, this amplifier is available for same-day shipping and is ideal for broadband applications that require low noise and high linearity.
