500 MHz Phase Locked Oscillator

Service Description

End Product + Design Documents + Production Documents

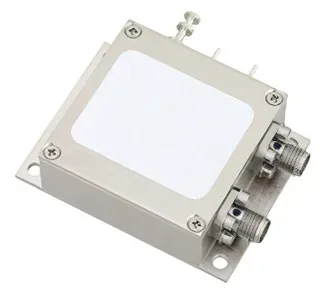

This compact and reliable Phase Locked Oscillator (PLO) module operates at a fixed frequency of 500 MHz and supports an external 10 MHz reference input, offering flexibility in system integration. It delivers a typical output power of +7 dBm and features low phase noise performance of -110 dBc/Hz at 10 kHz offset.

Powered by a single +12V DC supply, this oscillator provides excellent spurious suppression below -70 dBc (typical). It includes SMA connectors for RF output and reference input, and features DC bias and TTL lock detect pins to signal an out-of-lock condition.

The RoHS-compliant, nickel-plated package is designed for surface mount applications and meets MIL-STD-202 standards for vibration and shock. Operating temperature range is -30°C to +70°C, making it suitable for rugged industrial and communication systems.

• Phase Locked Oscillator (PLO) Module
• 500 MHz Fixed Frequency
• 10 MHz External Reference Frequency
• Output Power: +7 dBm typical
• Low Phase Noise: -110 dBc/Hz @ 10 kHz offset typical
• Low Spurious Suppression: < -70 dBc typical
• Nickel Plated Compact Package
• SMA Connectors
• TTL Lock Detect Pin
• -30°C to +70°C Operating Temperature
• Designed to meet MIL-STD-202 Test Conditions

Specifications

Ouput Frequency: 500 MHz
Ouput Impedance: 50 Ohms
Output Power: +7 dBm

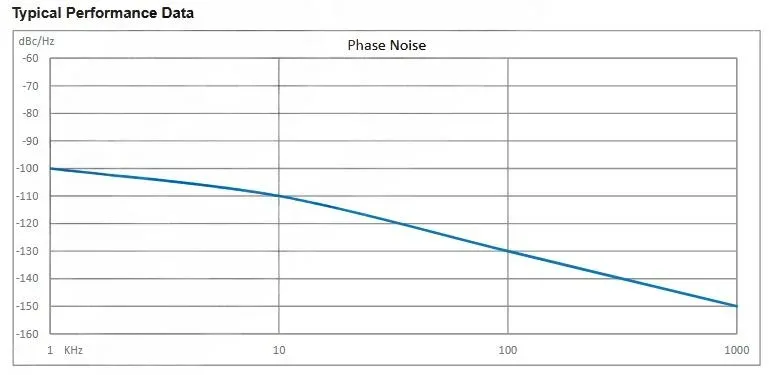

Phase Noise @ 1kHz Offset: -100 / -95 dBc/Hz
Phase Noise @ 10kHz Offset: -110 / -105 dBc/Hz
Phase Noise @ 100kHz Offset: -130 / -125 dBc/Hz
Phase Noise @ 1MHz Offset: -150 / -145 dBc/Hz
Reference Frequency: 10 MHz
Reference Impedance: 50 Ohms
Reference Input Power: +7 dBm
Reference Phase Noise @ 10Hz Offset: -110 dBc/Hz
Reference Phase Noise @ 100Hz Offset: -130 dBc/Hz
Reference Phase Noise @ 1kHz Offset: -145 dBc/Hz
2nd Harmonics: -35 / -30 dBc

Spurious: -70 / -65 dBc
Lock Detect: 5 VDC TTL, High=Lock
Supply Voltage (DC): 12 Vdc
Supply Current (DC): 150 – 200 mA

Length: 2 in [50.8 mm]
Width: 1.5 in [38.1 mm]
Height: 0.6 in [15.24 mm].
Weight: 0.103 lbs [46.72 g]
Body Material and Plating: Aluminum
