Surface Mount (SMT) 6 GHz Phase Locked Oscillator

Service Description

End Product + Design Documents + Production Documents

This 6,000 MHz phase-locked oscillator is designed to operate with an external 100 MHz reference oscillator, delivering stable and precise frequency output. It provides excellent phase noise performance, rated at -90 dBc/Hz at a 10 kHz offset, making it well-suited for high-performance RF systems.

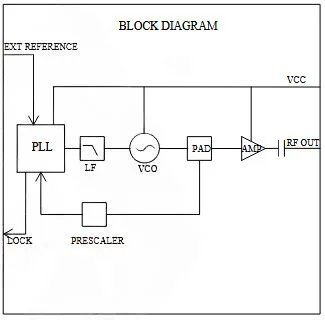

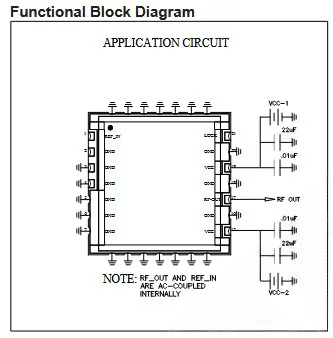

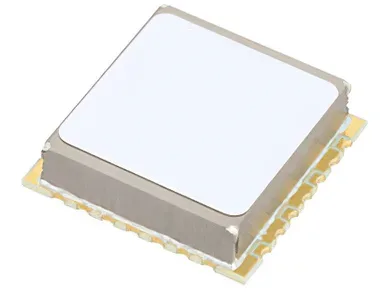

The device operates on a +5V DC supply, drawing approximately 125 mA. It is housed in a compact 0.9-inch surface-mount (SMT) package that follows an industry-standard footprint. The package’s underside is copper-clad and finished with 2–5 microinches of immersion gold over 150–250 microinches of electroless nickel, offering strong oxidation resistance and reliable solderability.

The reference oscillator delivers an output power of +7 dBm ±3 dB with a typical second harmonic suppression of -20 dBc. Designed to withstand harsh conditions, the oscillator is rated for operation between -30°C and +70°C and complies with MIL-STD-202 specifications for vibration and shock resistance.

Features

• 6,000 MHz Phase-Locked Oscillator
• External 100 MHz Reference Oscillator
• -90 dBc/Hz @ 10kHz offset
• Pout +7 dBm
• Harmonics -20 dBc
• Designed to meet MIL-STD-202 Environmental Condi-
tions
• connectorized version available see PE19XC7009

Specifications

Ouput Frequency: 6 GHz
Output Power: +4 – +10 dBm
Phase Noise @ 1kHz Offset: -90 / -85 dBc/Hz
Phase Noise @ 10kHz Offset: -90 / -85 dBc/Hz
Phase Noise @ 100kHz Offset: -105 / -100 dBc/Hz
Phase Noise @ 1MHz Offset: -130 / -125 dBc/Hz
Reference Frequency: 100 MHz
Reference Impedance: 50 Ohms
Reference Phase Noise @ 10Hz Offset: -95 dBc/Hz
Reference Phase Noise @ 100Hz Offset: -105 dBc/Hz
Reference Phase Noise @ 1kHz Offset: -135 dBc/Hz
2nd Harmonics: -25 -20 dBc
Spurious: -70 -65 dBc
Supply Voltage (DC) 1: 5 Vdc
Supply Current (DC) 1: 25 mA

Length: 0.9 in [22.86 mm]
Width: 0.9 in [22.86 mm]
Height: 0.21 in [5.33 mm].
Weight: 0.28 lbs [127.01 g]

Mounting Surface Material and Plating: Copper Clad Nickel, Gold
Design: Commercial
Reference Type: External
Package Style: Surface Mount
