Jamming Antenna – VWBO-4008000

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

400-8000 MHz Omnidirectional Broadband Antenna

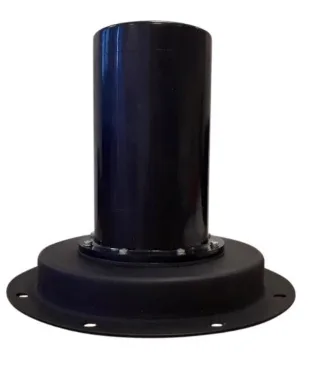

VWBO-4008000 is a frequency band extended version of the VWBO-4006000 antenna operating in the frequency range 400-6000 MHz. This antenna covers the frequency range where there are new threats against drones (6000-8000) and is an excellent solution as a jamming antenna, especially as an anti-drone antenna. It is a multi-functional antenna with its high power transmission (Up to 200 Watt continuous, % 100 duty cycle) and stable receiving specifications. This antenna is a perfect solution as a jamming antenna especially as a counter-drone antenna (anti-drone antenna), Counter UAV antenna (also called as “anti UAV antenna” or “C-UAV antenna”), Counter UAS antenna (also called as “anti UAS antenna” or “C-UAS antenna”), Counter RCIED antenna, communication antenna and monitoring antenna. Its high efficiency and compact structure provides it to be used as a vehicle antenna and fixed-site antenna. The ABS plastics radome of this antenna makes it mechanically stable and environmentally protected. This antenna is also a lightweight solution with its 0.5 kg weight and wideband characteristics.

Applications

• High Power Jamming Antenna
• Drone Jamming Antenna
• Counter RCIED Antenna
• High Power Communication Antenna
• Designed for High Performance at 200 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Wideband Monitoring Antenna
• Fixed-Site Antenna
• Lightweight Antenna (0.5 kg)

Specifications

Frequency Band and VSWR (Dependent on ground plane dimensions):

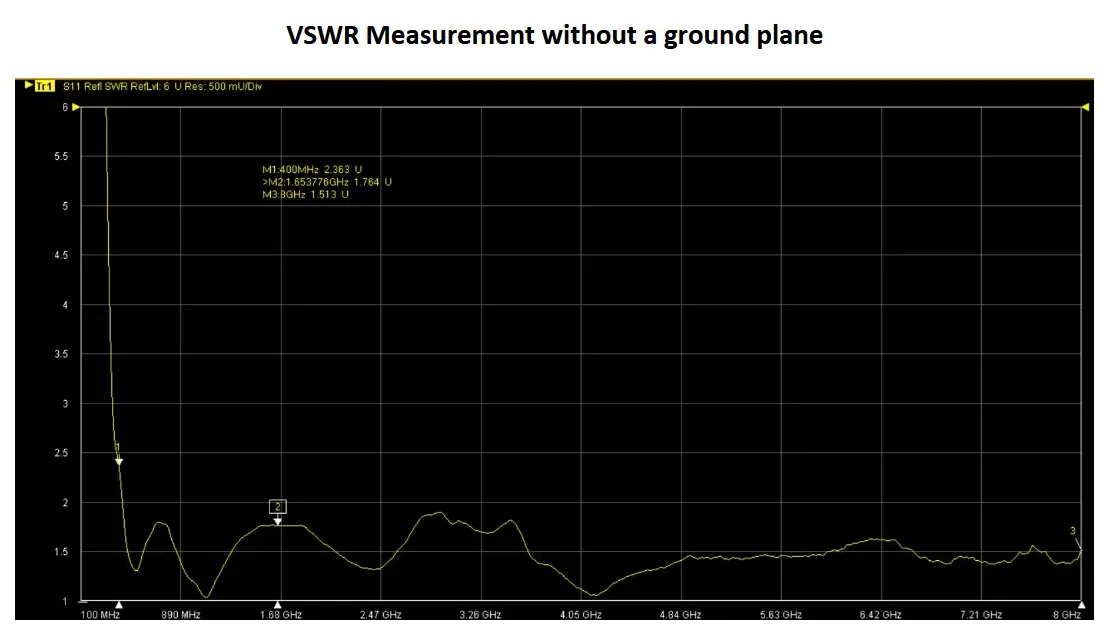

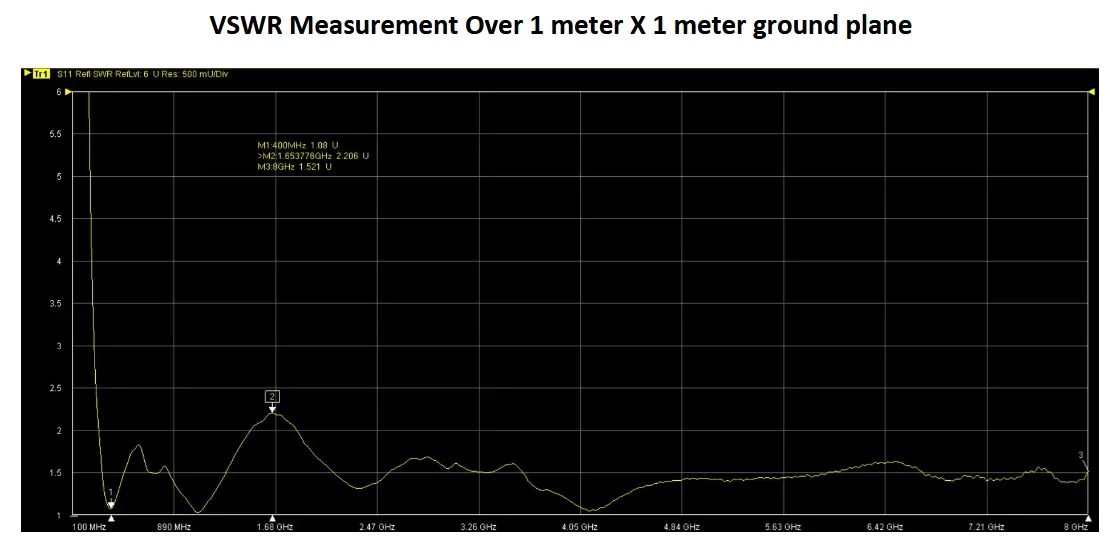

Over 1X1 m2 ground plane: 330-8000 MHz ≤ 2.5:1
Without a ground plane: 420-8000 MHz ≤ 3.0:1, 475-8000 MHz ≤ 2.5:1
Nominal Impedance: 50 ohm
Power Rating: 200 Watt Continuous (Tested)
Antenna Gain: 0-5 dBi depending on the frequency
Connector: N-Female
Radiation Pattern: Omni-directional
Polarization: Vertical (Linear)
Radome: Plastic Radome
Dimensions: 20 cm (Height) X 21 cm (Diameter)
Colour: Black

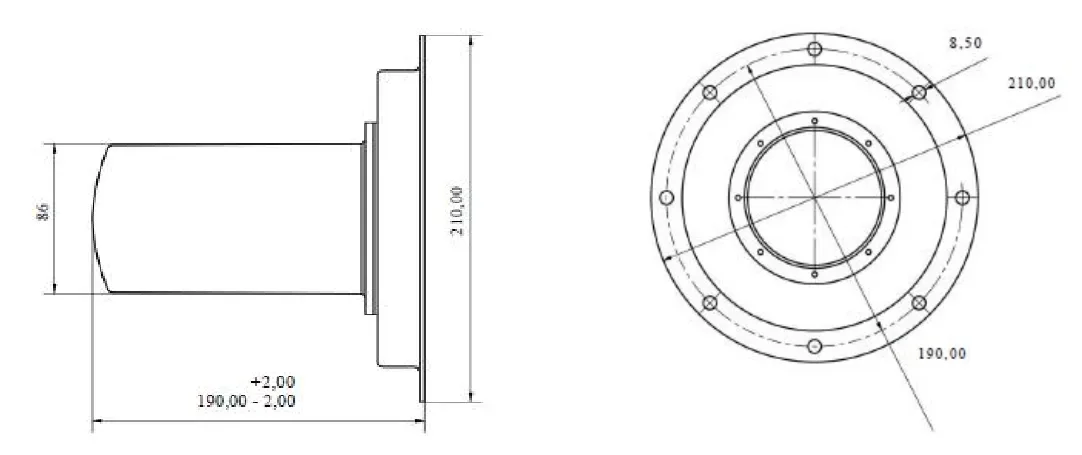

Mounting: See Technical Drawing
Vibration: MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
