Jamming Antenna – VWBO-4006000

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

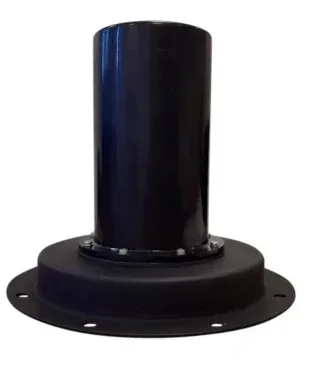

400-6000 MHz Omnidirectional Wideband Antenna

VWBO-4006000 is a multi-functional antenna with its high power transmission (Up to 200 Watt continuous, % 100 duty cycle) and stable receiving specifications. This antenna is a perfect solution as a jamming antenna especially as a counter-drone antenna (anti-drone antenna), Counter UAV antenna (also called as “anti UAV antenna” or “C-UAV antenna”), Counter UAS antenna (also called as “anti UAS antenna” or “C-UAS antenna”), Counter RCIED antenna, communication antenna and monitoring antenna. Its high efficiency and compact structure provides it to be used as a vehicle antenna and fixed-site antenna. The ABS plastics radome of this antenna makes it mechanically stable and environmentally protected. This antenna is also a lightweight solution with its 0.5 kg weight and wideband characteristics.

Applications

• High Power Jamming Antenna
• Counter Drone Antenna (also called as “Anti Drone Antenna”)
• Counter UAV Antenna (also called as “Anti UAV Antenna” or “C UAV Antenna”)
• Counter UAS Antenna (also called as “Anti UAS Antenna” or “C UAS Antenna”)
• Counter RCIED Antenna (also called as “Counter IED Antenna”)
• High Power Communication Antenna
• Wideband Monitoring Antenna
• Fixed-Site Ground Based, Fixed-Site Mobile (Vehicle Antenna), UAV-Based, Handheld
• Lightweight Antenna (0.5 kg)

Specifications

Frequency Band and VSWR (Dependent on ground plane dimensions):

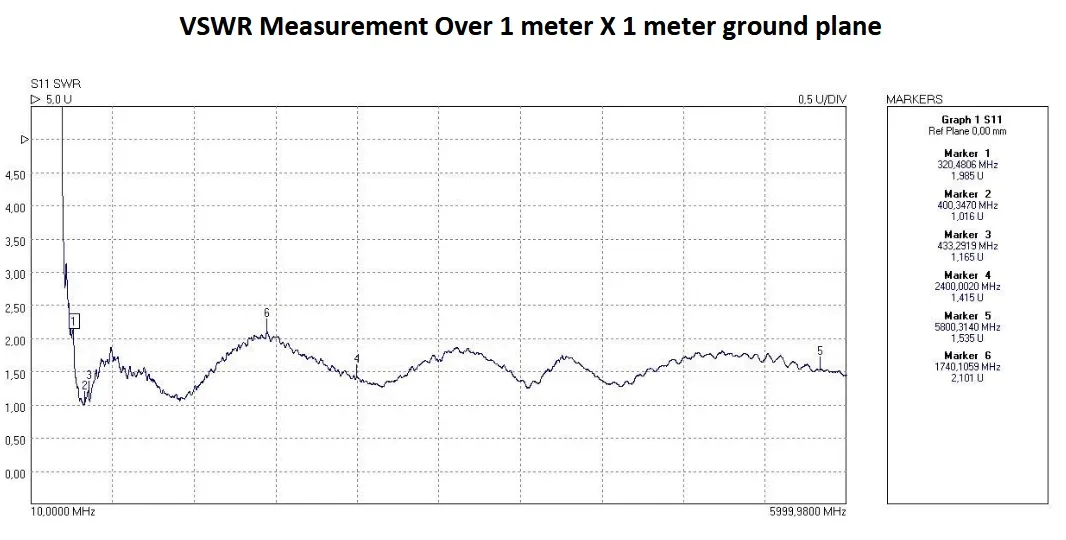

Over 1X1 m2 ground plane: 330-6000 MHz ≤ 2.5:1

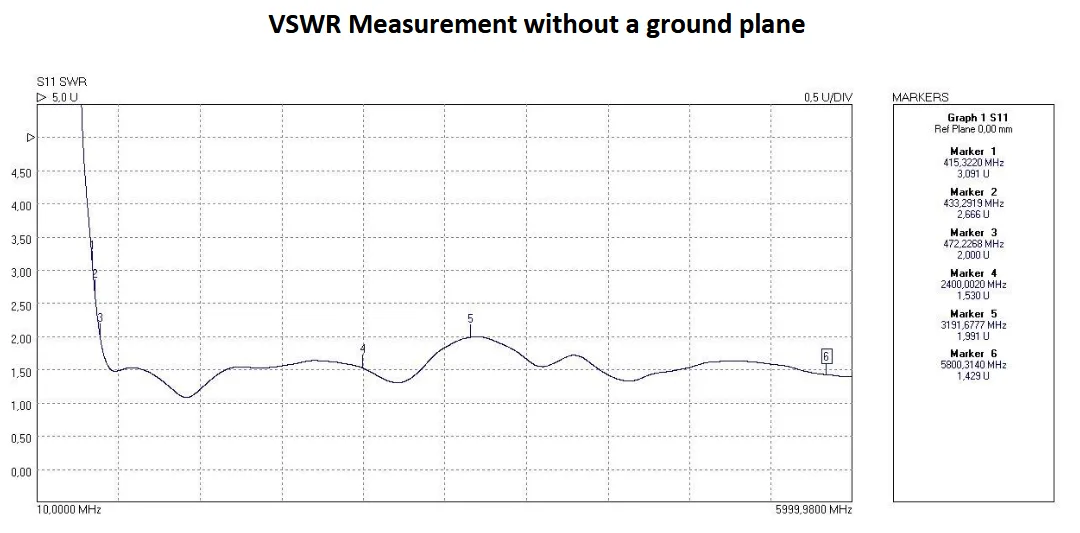

Without a ground plane: 420-6000 MHz ≤ 3.0:1, 475-6000 MHz ≤ 2.5:1
Nominal Impedance: 50 ohm
Power Rating: 200 Watt Continuous (Tested)
Antenna Gain: 0-5 dBi depending on the frequency
Connector: N-Female
Radiation Pattern: Omni-directional
Polarization: Vertical (Linear)
Radome: Plastic Radome
Dimensions: 20 cm (Height) X 21 cm (Diameter)
Colour: Black

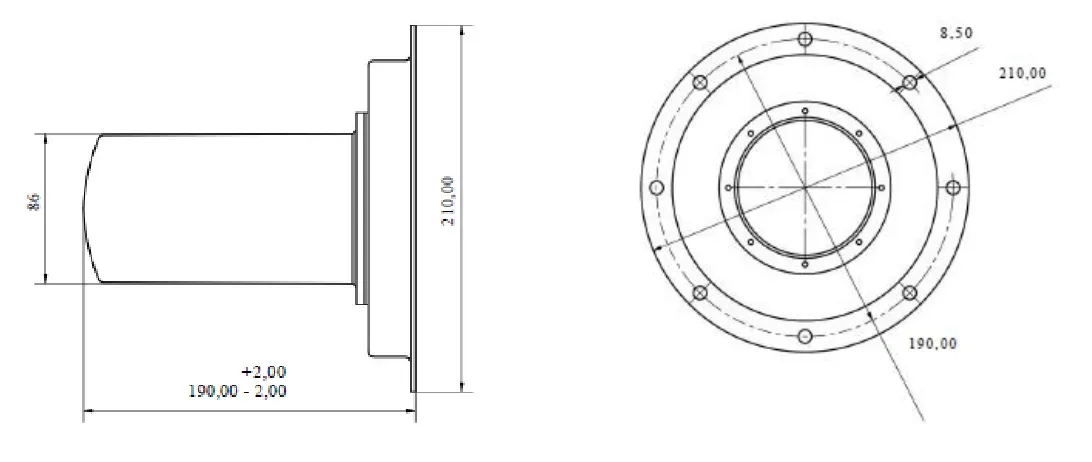

Mounting: See Technical Drawing
Vibration: MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
