Jamming Antenna – VWBO-20200-2

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

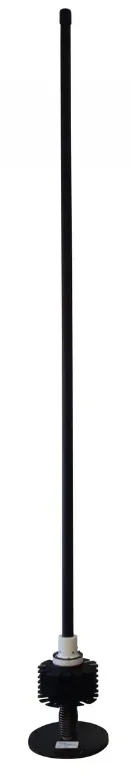

High Power Omnidirectional Vehicle Antenna (2 meters)

VWBO-20200-2 is a 2 meters high power omnidirectional vehicle antenna suitable as a jamming antenna and a communication antenna. This antenna is mostly used as a Counter RCIED Antenna (Counter IED Antenna). The fiber radome of this antenna makes it mechanically stable and environmentally protected. The passive heatsink structure provides it to work at very high power applications with its electrically small dimensions. The spring at the base of this antenna protects it from shocks.

Applications

• High Power Jamming Antenna
• Counter RCIED Antenna (Counter IED Antenna)
• High Power Communication Antenna
• Designed for High Performance at 160 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Portable Antenna (Manpack Antenna)
• Fixed-Site Antenna

Specifications

Frequency Band and VSWR Over 1X1 m2 ground plane: 4-220 MHz ≤ 3.0:1
Nominal Impedance: 50 ohm
Power Rating: 160 Watt Continuous (Tested)
Connector: N-Female
Antenna Radiation Pattern: Omni-directional
Polarization: Vertical (Linear)
Colour: Black
Radome: Fiber Radome
Height: 2 meters
