Jamming Antenna – VWBO-20200-1

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

High Power Omnidirectional Vehicle Antenna (1 meter)

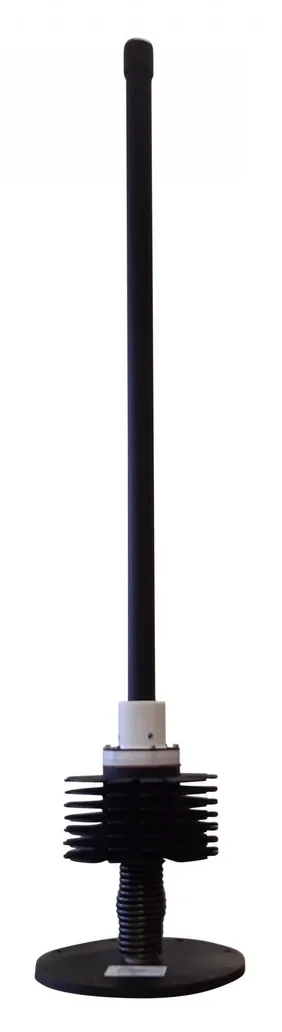

VWBO-20200-1 is a high power omnidirectional vehicle antenna suitable as a jamming antenna and a communication antenna. This antenna is designed as a wideband 160 Watt Counter-RCIED Antenna. The fiber radome of this antenna makes it mechanically stable and environmentally protected. The passive heatsink structure provides it to work at very high power applications with its electrically small dimensions. The spring at the base of this antenna protects it from shocks. This antenna is appropriate as a vehicle antenna and fixed-site antenna.

Applications

• High Power Jamming Antenna
• Counter RCIED Antenna (Counter IED Antenna)
• High Power Communication Antenna
• Designed for High Performance at 160 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Portable Antenna (Manpack Antenna)
• Fixed-Site Antenna

Specifications

Frequency Band and VSWR Over 1X1 m2 ground plane: 4-220 MHz ≤ 3.0:1
Nominal Impedance: 50 ohm
Power Rating: 160 Watt Continuous (Tested)
Connector: N-Female
Antenna Radiation Pattern: Omni-directional
Polarization: Vertical (Linear)
Radome: Fiber Radome
Height: 1 meter
Weight: 3.9 kg
Colour: Black

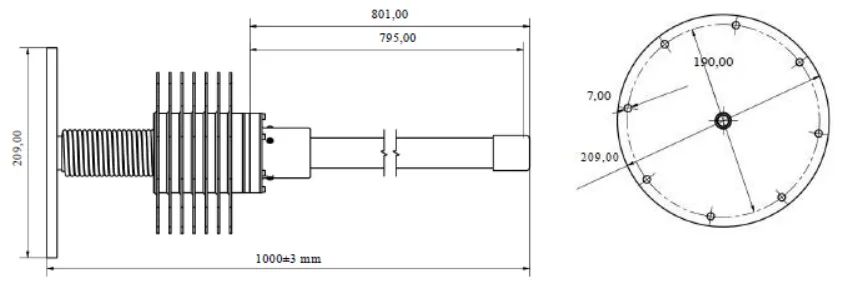

Mounting: See technical drawing
Vibration: MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
