Jamming Antenna – VWBO-20200-1.5

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

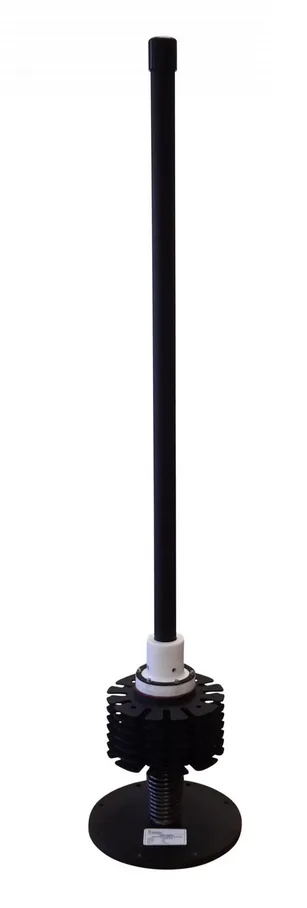

High Power Omnidirectional Vehicle Antenna (1.5 meters)

VWBO-20200-1.5 is a ultra wide-band high power omnidirectional vehicle antenna suitable as a jamming antenna and a communication antenna. This antenna is mostly used as a Counter-RCIED Antenna (Counter IED Antenna). The fiber radome of this antenna makes it mechanically stable and environmentally protected. The spring at the base of this antenna protects it from shocks.

Applications

• High Power Jamming Antenna
• Counter RCIED Antenna (Counter IED Antenna)
• High Power Communication Antenna
• Designed for High Performance at 160 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Portable Antenna (Manpack Antenna)
• Fixed-Site Antenna

Specifications

Frequency Band and VSWR Over 1X1 m2 ground plane: 4-220 MHz ≤ 3.0:1
Nominal Impedance: 50 ohm
Power Rating: 160 Watt Continuous (Tested)
Connector: N-Female
Antenna Radiation Pattern: Omni-directional
Polarization: Vertical (Linear)
Radome: Fiber Radome
Height: 1.5 meters
Colour: Black
