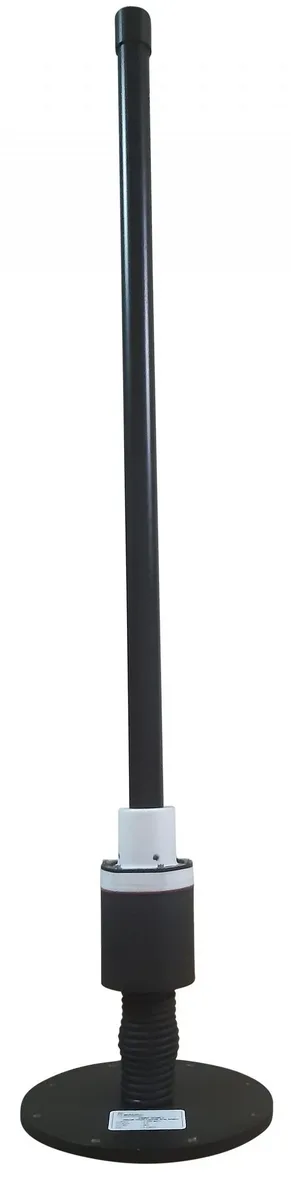

Jamming Antenna – VWBO-05520-1

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

Applications

• High Power Jamming Antenna
• Counter RCIED Antenna (Counter IED Antenna)
• High Power Communication Antenna
• Designed for High Performance at 100 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Portable Antenna (Manpack Antenna)
• Fixed-Site Antenna
• Appropriate for 20-512 MHz and 30-512 MHz Applications

Specifications

Frequency Band and VSWR Over 1X1 m2 ground plane: 5-520 MHz ≤ 3.5:1
Nominal Impedance: 50 ohm
Power Rating: 100 Watt Continuous (Tested)
Connector: N-Female
Antenna Radiation Pattern: Omni-directional
Polarization: Vertical (Linear)
Radome: Fiber Radome
Height: 1 meter
Weight: 3 kg
Colour: Black
Mounting: See technical drawing
Vibration: MIL-STD-810H, Method 514.8 Category 4 Composite Wheeled Vehicle Vibration Exposure Levels According to Figure 514.8C-6 and Table 514.8C-VII
