Jamming Antenna – HP-AMHA-11001350

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

1100-1350 MHz Right Hand Circular Polarized (RHCP) High Power Axial Mode Helical Antenna

HP-AMHA-11001350 is a high power (Up to 200 Watt continuous, % 100 duty cycle) right hand circular polarized (RHCP) axial mode helical antenna. This antenna is a perfect solution for counter GNSS (anti-GNSS) applications at low frequency band. Counter drone applications need counter GNSS antennas (counter GPS antenna) at low and high frequency bands for jamming GPS or spoofing. This antennas works highly efficient at lower GNSS frequencies and it can be used as a vehicle antenna or a fixed-site antenna. The fiber radome of this antenna makes it mechanically stable and environmentally protected.

Applications

• Right Hand Circular Polarized High Power Counter Drone Antenna
• High Power Counter GNSS Antenna (Counter GPS Antenna) Covering Low Band GNSS Frequencies
• Drone Jamming Antenna
• High Power Jamming Antenna
• High Power Communication Antenna
• Designed for High Performance at 200 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Wideband Monitoring Antenna
• Fixed-Site Antenna

Specifications

Frequency Band and VSWR: 1100-1350 MHz ≤ 1.5:1
Nominal Impedance: 50 ohm
Power Rating: 200 Watt Continuous (Tested)

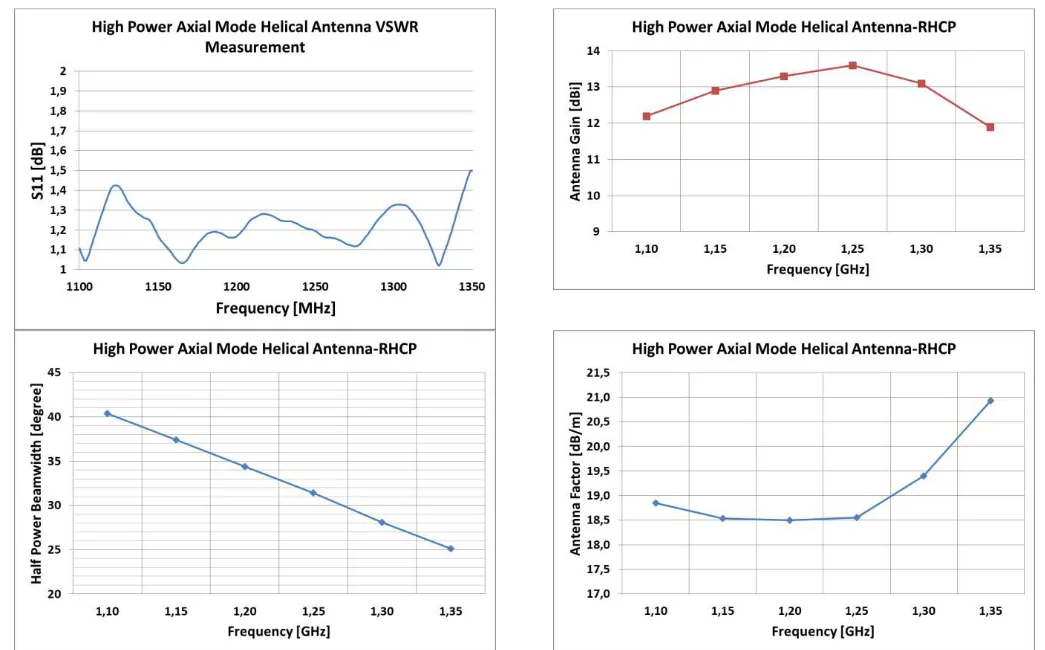

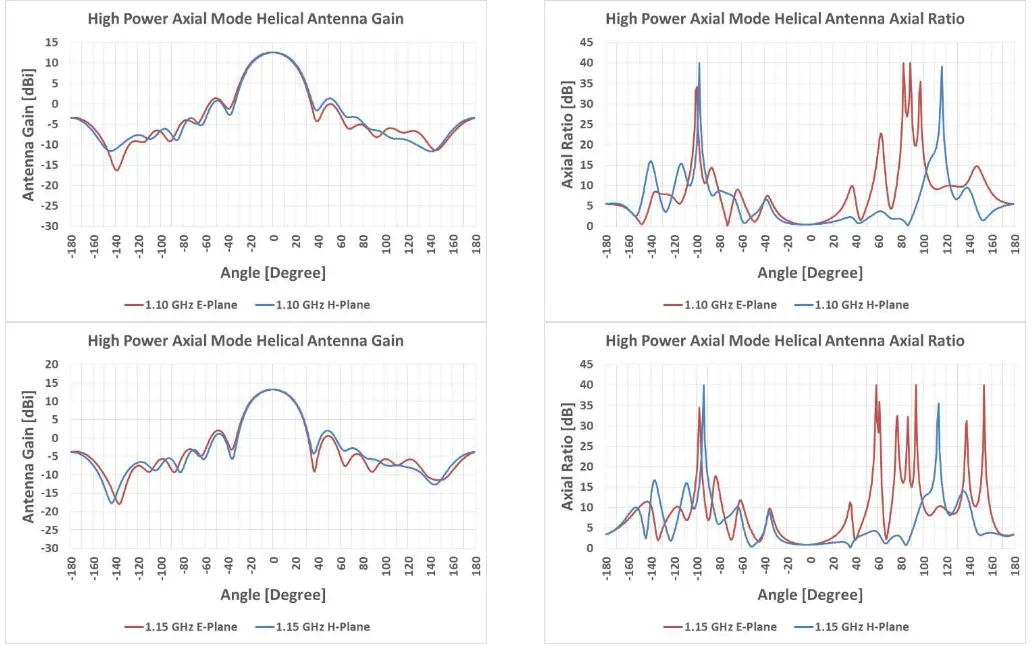

Antenna Gain: 11.9-13.6 dBi depending on the frequency (See antenna gain graph)
Beamwidth: Between 25° and 40.4° depending on the frequency (See antenna beamwidth graph)
Connector: N-Female
Radiation Pattern: Directional
Polarization: Right Hand Circular Polarized (RHCP)
Radome: Fiber Glass Radome
Dimensions: 770 mm (Height) X 245 mm (Diameter)
Colour: Dark Green (Ask for other colours)
Waterproof: Waterproof
