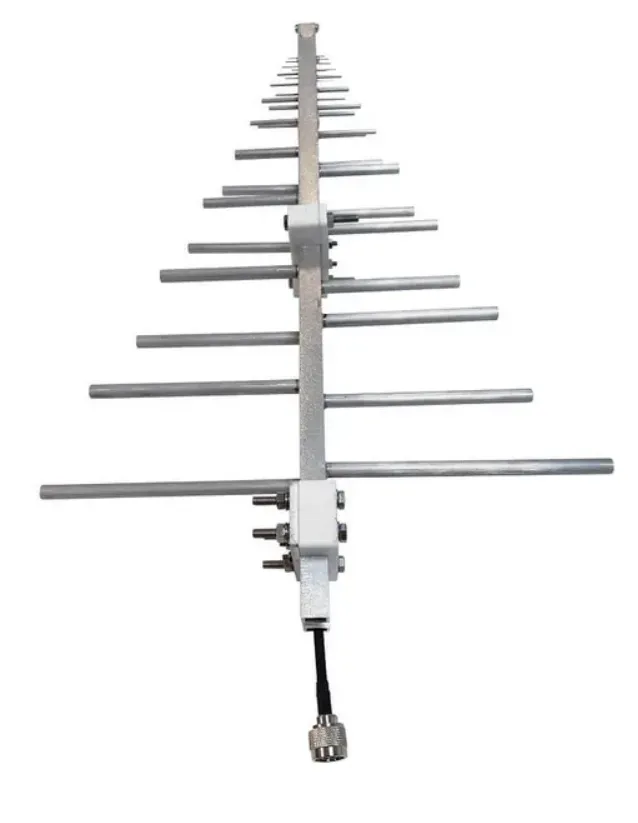

400-6000 MHz High Power Wideband Log Periodic Antenna

HPLPDA-4006000 is a high power (Up to 200 Watt continuous, % 100 duty cycle) wideband and directional antenna. This antenna is a perfect solution solution as a counter drone antenna (Counter UAV antenna or Counter UAS antenna). It works highly efficient in its wide frequency band covering 400 MHz to 6000 MHz. This antenna can be used as a vehicle antenna or a fixed-site antenna. It is a DC shorted antenna for static and surge protection. It can also be equipped with a radome enclosure.

Applications

• Linearly Polarized High Power Counter Drone Antenna
• Drone Jamming Antenna
• High Power Jamming Antenna
• High Power Communication Antenna
• Designed for High Performance at 200 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Wideband Monitoring Antenna
• Fixed-Site Antenna

Specifications

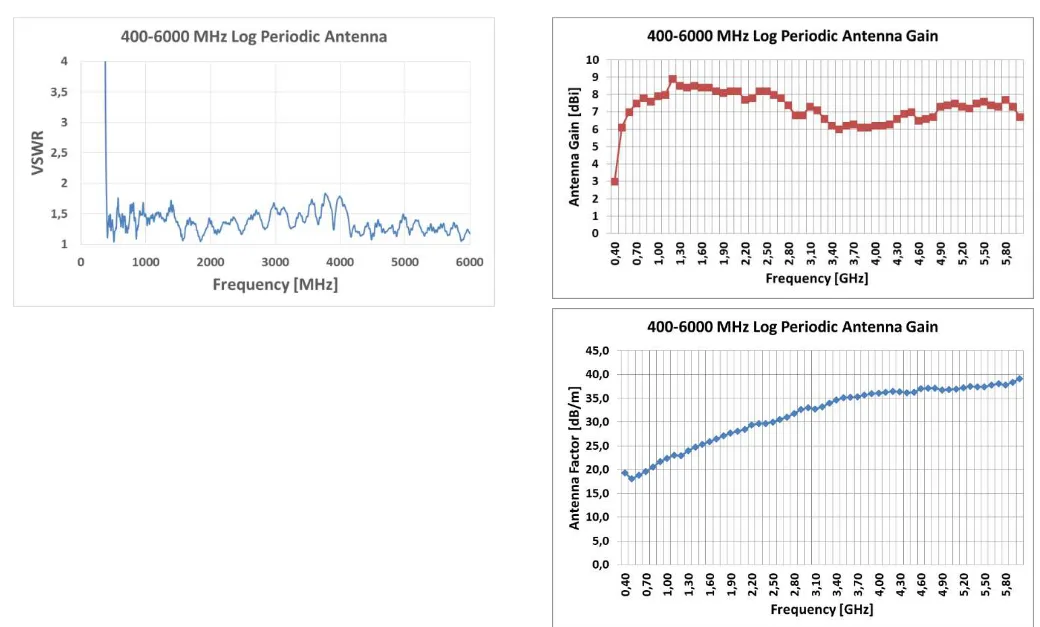

Frequency Band and VSWR: 400-6000 MHz ≤ 2:1
Nominal Impedance: 50 ohm
Power Rating: 200 Watt Continuous (Tested)

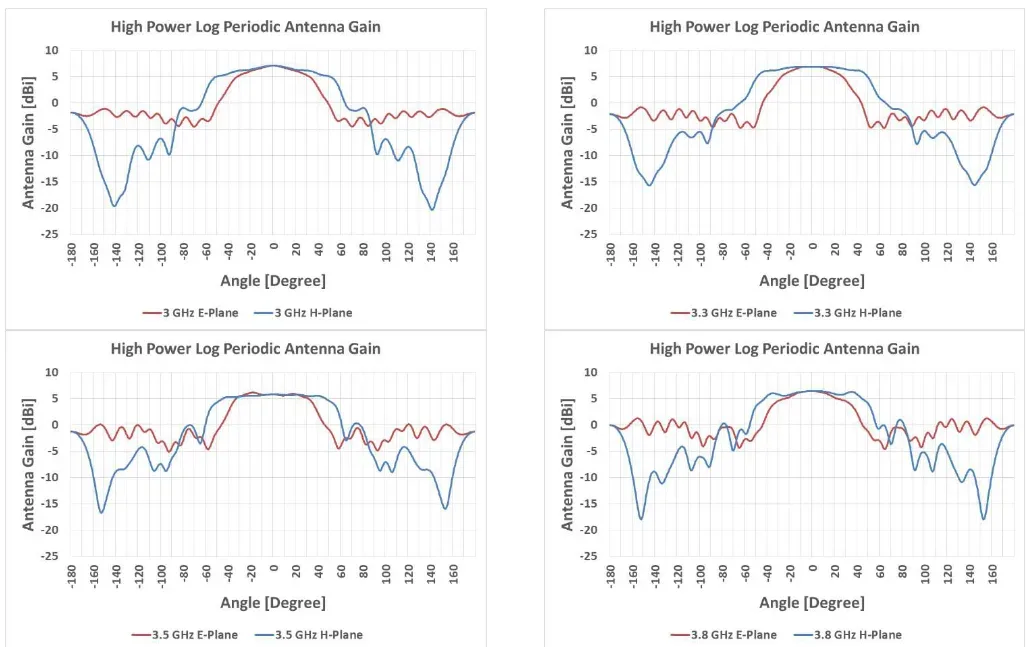

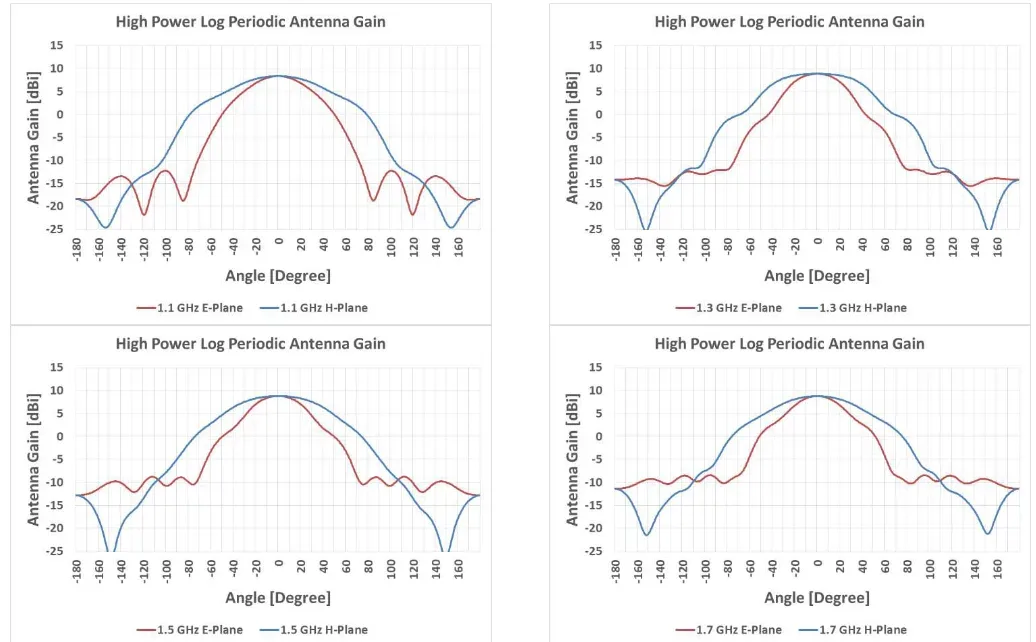

Antenna Gain: Typically 7 dBi (See antenna gain graph)
Connector: N-Female
Radiation Pattern: Directional
Polarization: Linearly Polarized
Dimensions: 530 mm (Length) X 370 mm (Width)
DC Connection: Equipped with a DC short for static and surge protection.
