Jamming Antenna – HP-AMHA-11501700

Service Description

End-Product Files / 3D CAD Files / Production Files / Bill of Materials / Simulations

1150-1700 MHz Right Hand Circular Polarized (RHCP) High Power Axial Mode Helical Antenna

HP-AMHA-11501700 is a high power (Up to 200 Watt continuous, % 100 duty cycle) right hand circular polarized (RHCP) axial mode helical antenna. This antenna is a perfect solution for counter drone (anti-drone) applications. Counter drone applications need counter GNSS antenna (counter GPS antenna) for jamming GPS or spoofing. It is a highly efficient antenna and it can be used as a vehicle antenna or a fixed-site antenna. The fiber radome of this antenna makes it mechanically stable and environmentally protected.

Applications

• Right Hand Circular Polarized High Power Counter Drone Antenna
• High Power Counter GNSS Antenna (Counter GPS Antenna)
• Drone Jamming Antenna
• High Power Jamming Antenna
• High Power Communication Antenna
• Designed for High Performance at 200 Watt Continuous Power (%100 duty cycle)
• Vehicle Antenna
• Wideband Monitoring Antenna
• Fixed-Site Antenna

Specifications

Frequency Band and VSWR: 1150-1700 MHz ≤ 2:1 (Below 1.5 in most of the frequency band)
Nominal Impedance: 50 ohm
Power Rating: 200 Watt Continuous (Tested)

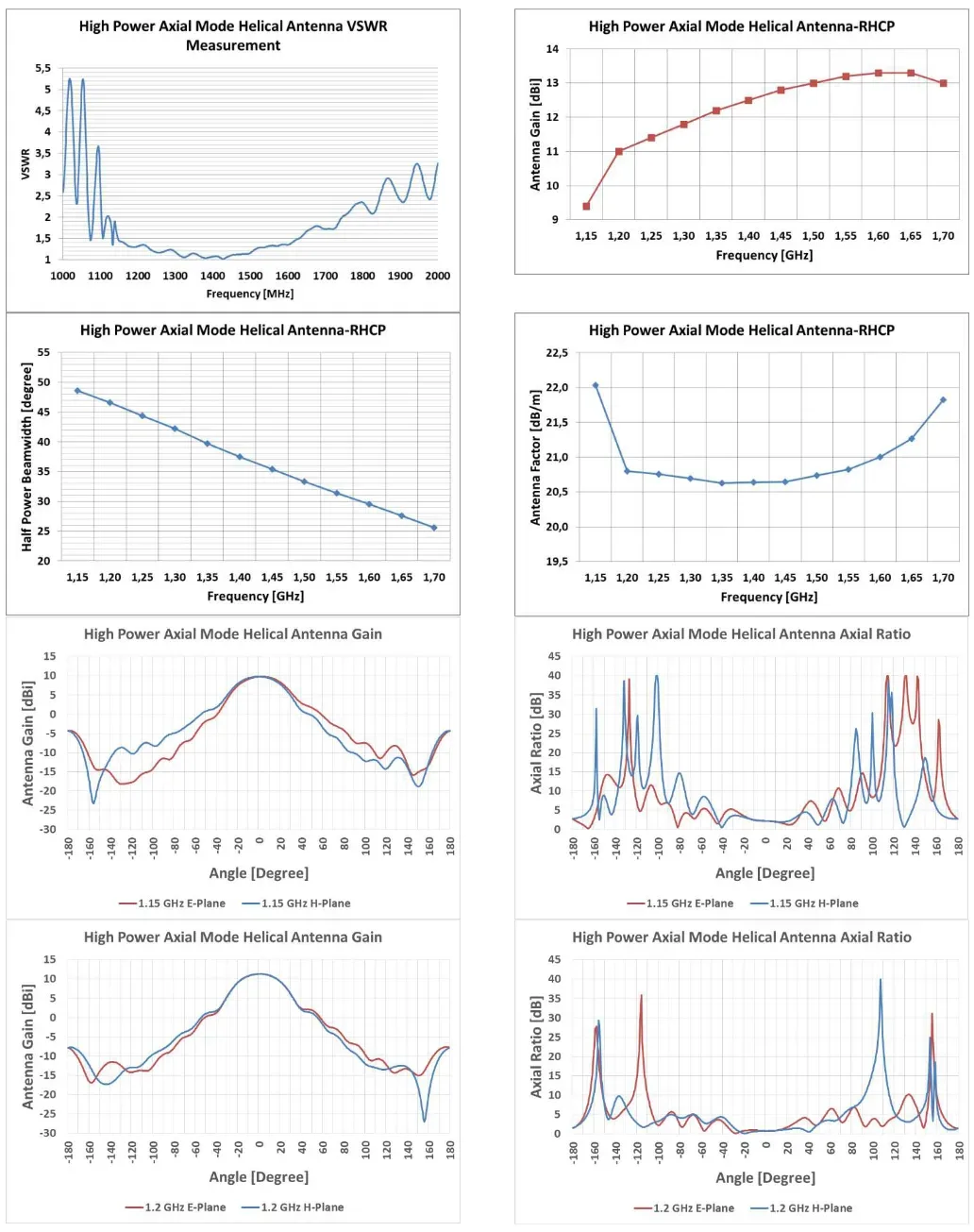

Antenna Gain: 9.4-13.3 dBi depending on the frequency (See antenna gain graph)
Beamwidth: Between 26° and 49° depending on the frequency (See antenna beamwidth graph)
Connector: N-Female
Radiation Pattern: Directional
Polarization: Right Hand Circular Polarized (RHCP)
Radome: Fiber Glass Radome
Dimensions: 770 mm (Height) X 245 mm (Diameter)
Colour: Dark Green (Ask for other colours)
Waterproof: Waterproof
