1-18 GHz Double Ridged Horn Antenna

The 1-18 GHz Dual Ridged Horn Antenna is a high-performance antenna designed for a wide frequency range from 1 GHz to 18 GHz. Featuring a dual-ridge structure, this antenna offers superior bandwidth and reduced reflections, making it ideal for applications such as radar, wireless communications, and electromagnetic compatibility (EMC) testing.

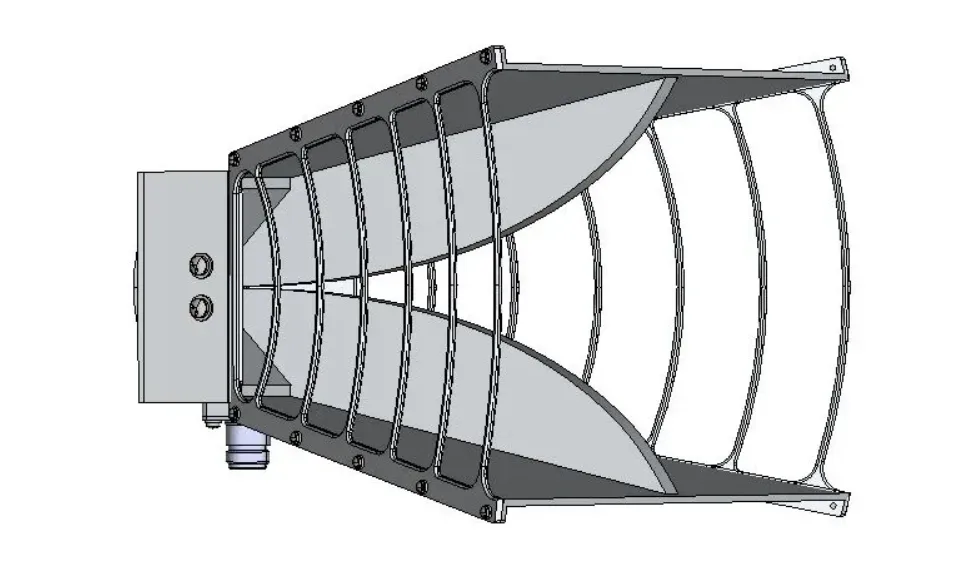

In addition, the 1-18 GHz Dual Ridged Horn Antenna is accompanied by 3D CAD files and simulation data, allowing for detailed insights into its performance and easy integration into custom setups. These resources facilitate optimization and customization, ensuring seamless implementation for a variety of applications.

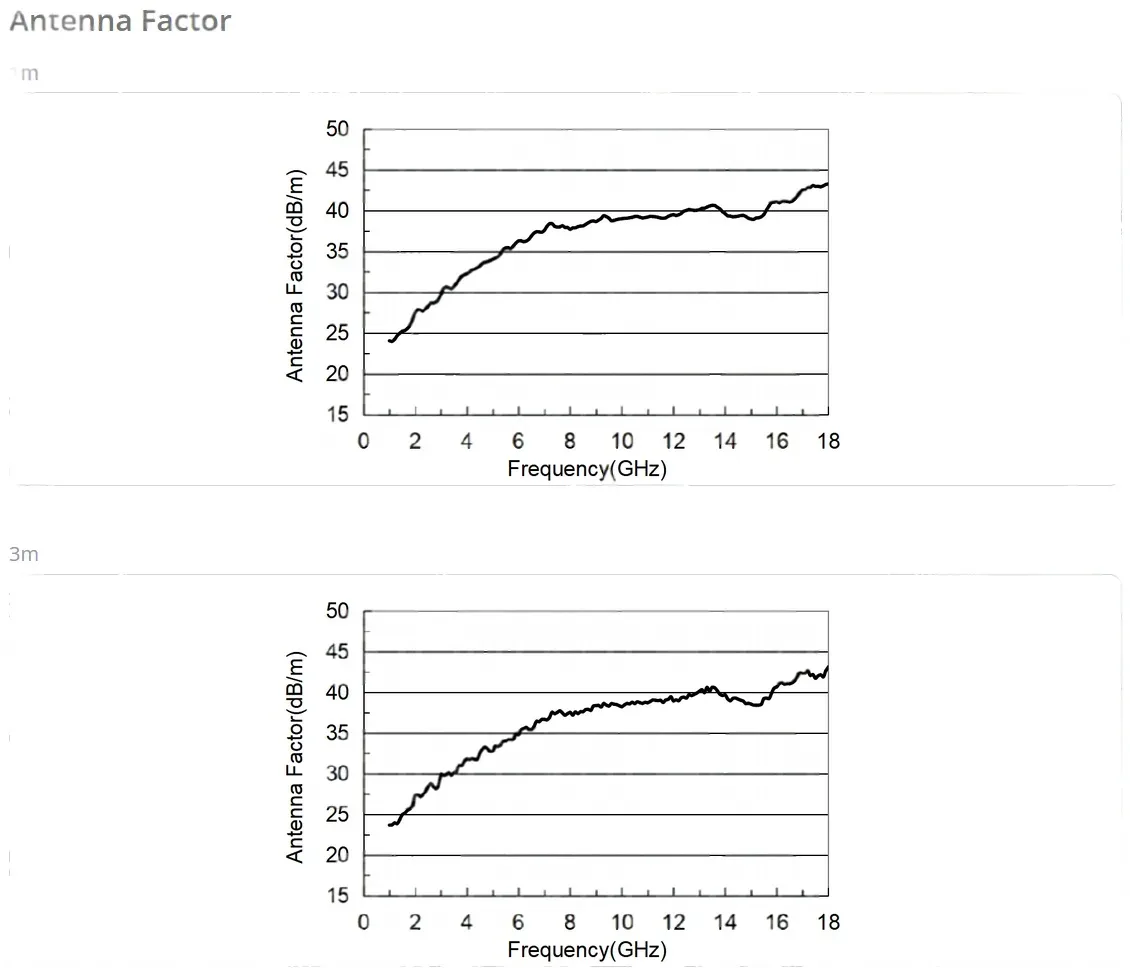

Specification

Frequency Min (GHz): 1
Frequency Max (GHz): 18

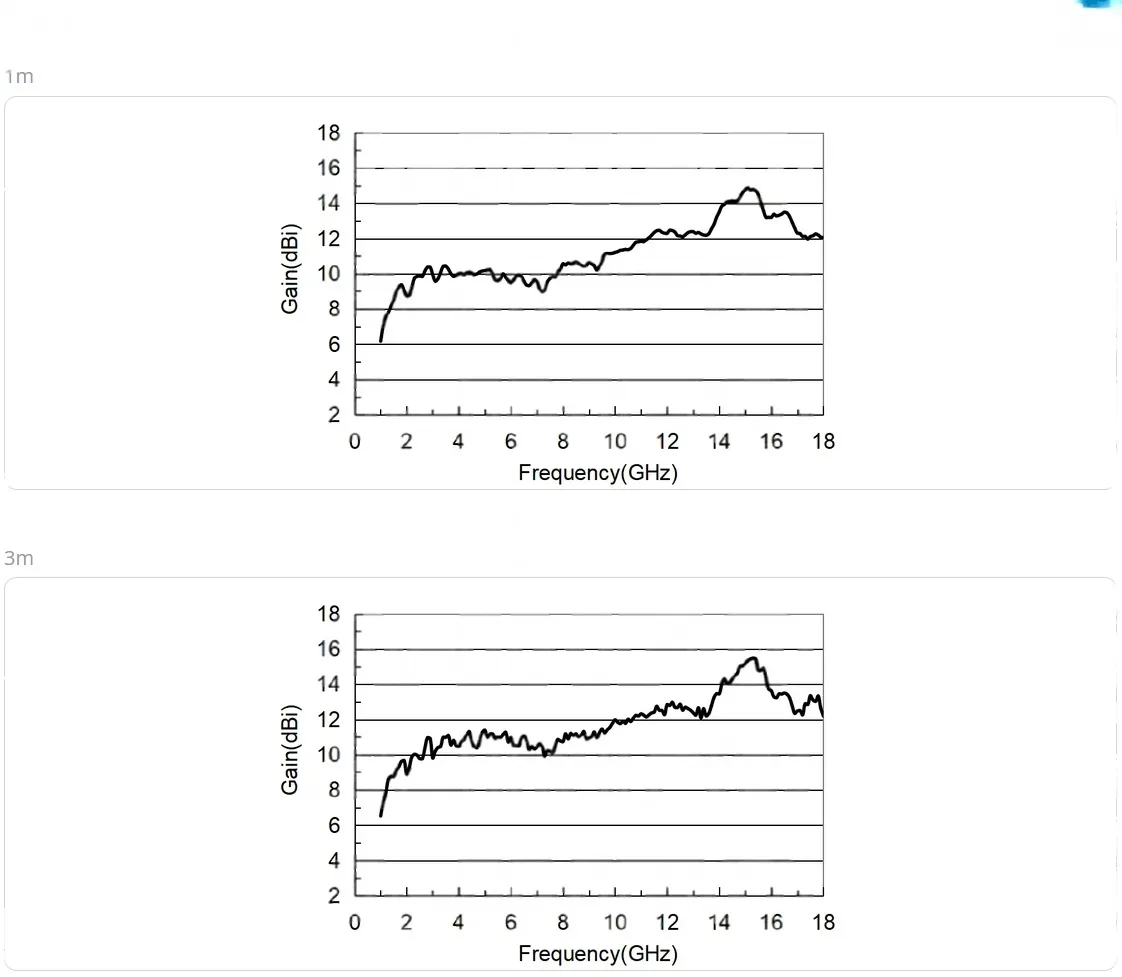

Gain, Typ (dBi): 11
Polarization: Linear
3dB Beamwidth, E-Plane, Min (Deg.): 11
3dB Beamwidth, E-Plane, Max (Deg.): 100
3dB Beamwidth, H-Plane, Min (Deg.): 10
3dB Beamwidth, H-Plane, Max (Deg.): 85
Cross Pol. Isolation, Typ (dB): 25
VSWR, Typ: 1.5:1
Impedance, (Ohm): 50
Power Handling, CW, (W): 300
Power Handling, Peak, (W): 500

Interface

Output Type: Coaxial
Connector: N Type
Connector Gender: Female

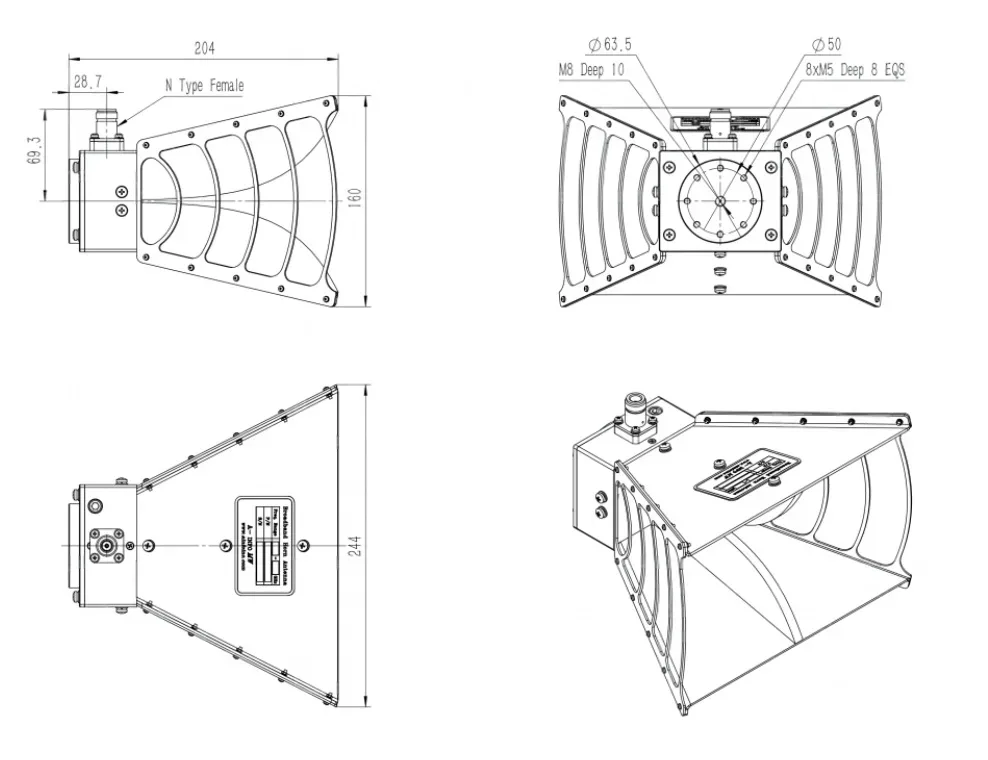

Mechanical Specification

Body Material: Al
Finish: Chemical Conversion Coating and Sand Blasting
Size, W (mm): 244
Size, H (mm): 160
Size, L (mm): 204
Weight, (kg): 1.45
