800-4000MHz PCB LPDA

Service Description

Simulations / 3D CAD Files

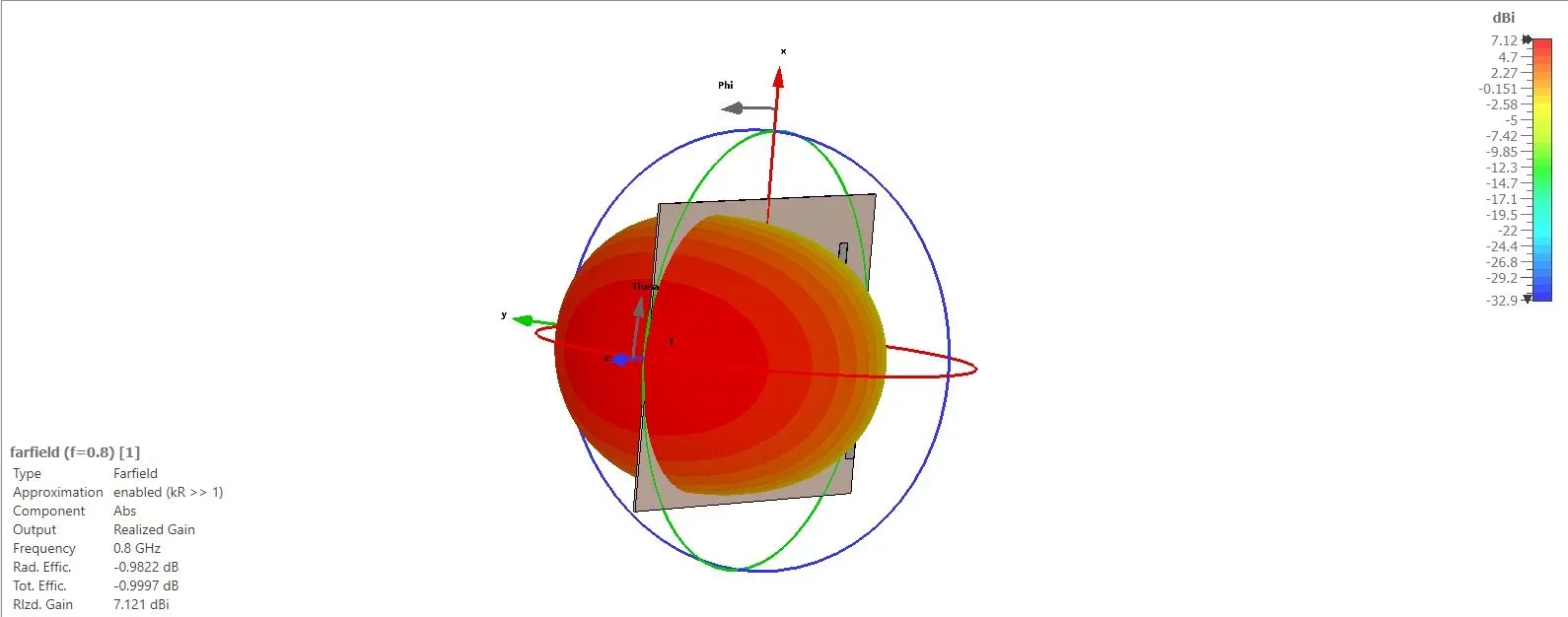

The 800-4000 MHz PCB Log-Periodic Dipole Array (LPDA) antenna is a high-performance, broadband antenna designed for applications requiring wide frequency coverage and consistent gain. Operating across the 800 MHz to 4000 MHz range, this PCB-based LPDA delivers a realized gain of 7 dB, as confirmed through simulation.

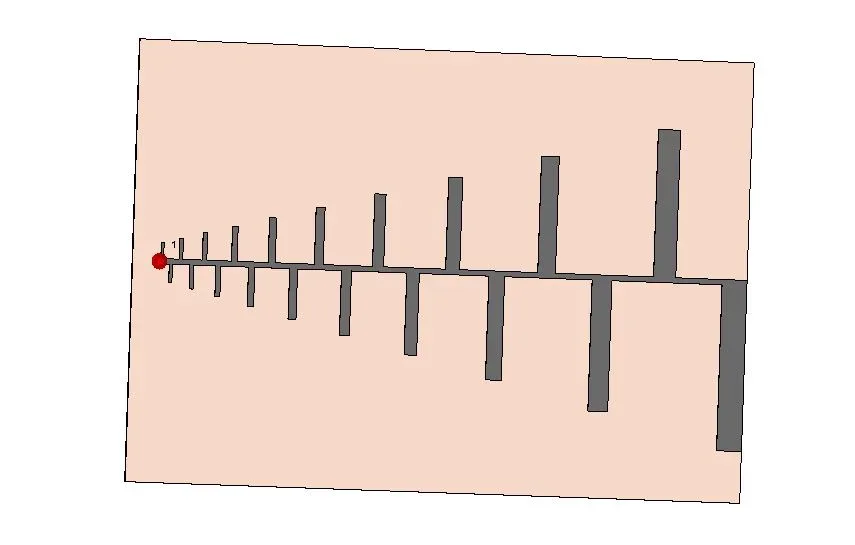

Its compact and lightweight design makes it ideal for integration into RF systems, wireless communication, and test environments. The antenna’s log-periodic structure ensures stable performance across the entire frequency band, providing reliable radiation patterns and efficient impedance matching.

Engineered for versatility, the 800-4000 MHz PCB LPDA is suitable for signal monitoring, EMC testing, and general-purpose RF applications, offering robust performance in both lab and field conditions.
