Wireless Module

Service Description

End Product + Design Documents + Production Documents

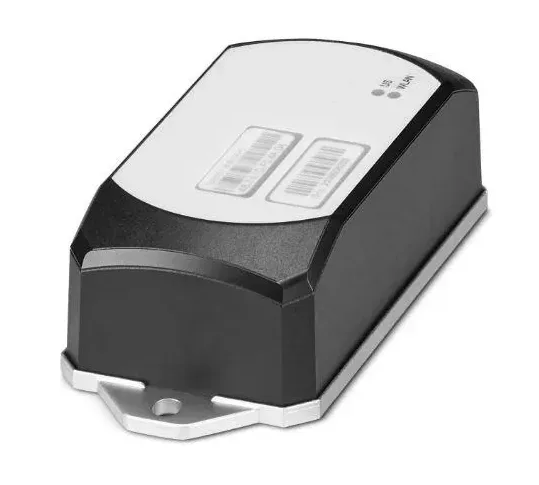

These industrial Wi-Fi® modules are equipped with advanced Wi-Fi 6 (IEEE 802.11ax) technology to deliver reliable, secure wireless communication. Operating across both 2.4 GHz and 5 GHz bands, they support supply voltages from 9VDC to 32VDC. Designed with integrated antennas for easy single-hole mounting, they offer streamlined installation in compact systems such as automated guided vehicles (AGVs) and mobile robotics.

Key features include support for OFDMA and BSS coloring, real-time data transmission capabilities, net data throughput exceeding 600 Mbps, client and soft access point modes, and backward compatibility with legacy WLAN standards like Wi-Fi 4. These capabilities make them well-suited for applications such as video monitoring, wireless integration of smart devices, and communication across mobile transport platforms.

An upgraded processor enhances responsiveness, reduces startup time, and maintains stable performance—even in Network Address Translation (NAT) mode. The modules operate effectively in ambient temperatures from -30°C to 60°C and tolerate humidity levels from 5% to 95% (non-condensing), ensuring consistent operation in demanding environments.

Features

• Product type: Wireless module
• Overvoltage category: II (IEC 61010-1)
• Type: IEEE 802.11 a/b/g/n/ac/ax 2,4 GHz, 5 GHz > 600 MBit/s
• Supply voltage: 24 V DC
• Supply voltage range: 9 V DC – 32 V DC
• Supply current: typ. 170 mA
• Current consumption: max. 620 mA
• Frequency band: 2.4 GHz / 5 GHz

• Width: 62.8 mm
• Height: 36.5 mm
• Depth: 113.2 mm
