RF Detector – 500MHz to 43.5GHz

Service Description

End Product + Design Documents + Production Documents

This compact envelope detector operates over a broad RF input frequency range from 500 MHz to 43.5 GHz. It provides a baseband voltage output proportional to the instantaneous amplitude of the input signal, supporting input power levels from -30 to +15 dBm. Housed in a gold over nickel-plated brass alloy case (0.84″ x 0.96″ x 0.37″), the unit features 2.92mm RF connectors for high-frequency performance in a small form factor.

Features

• Ultra-wideband, 500 MHz to 43.5 GHz
• Wide dynamic range of input power, -30 to +15dBm
• Single positive supply voltage, +5V
• Low supply current: 3mA at +5V typical
• Fast output rise time: 4ns typical

Specifications

• Frequency Range: 500 – 43500 MHz

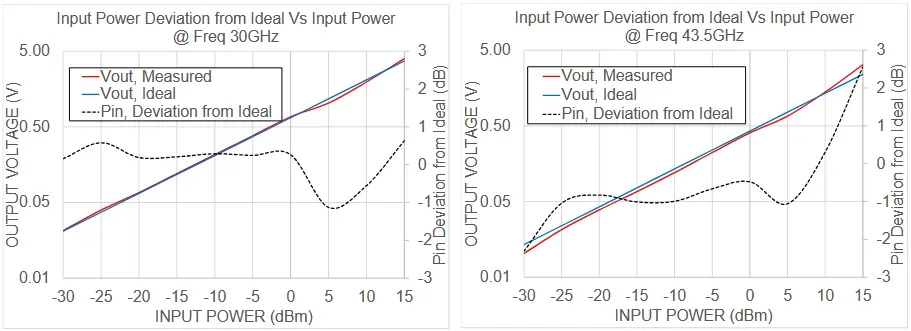

• Dynamic Range at ±1dB Error: -30 to 15 dBm

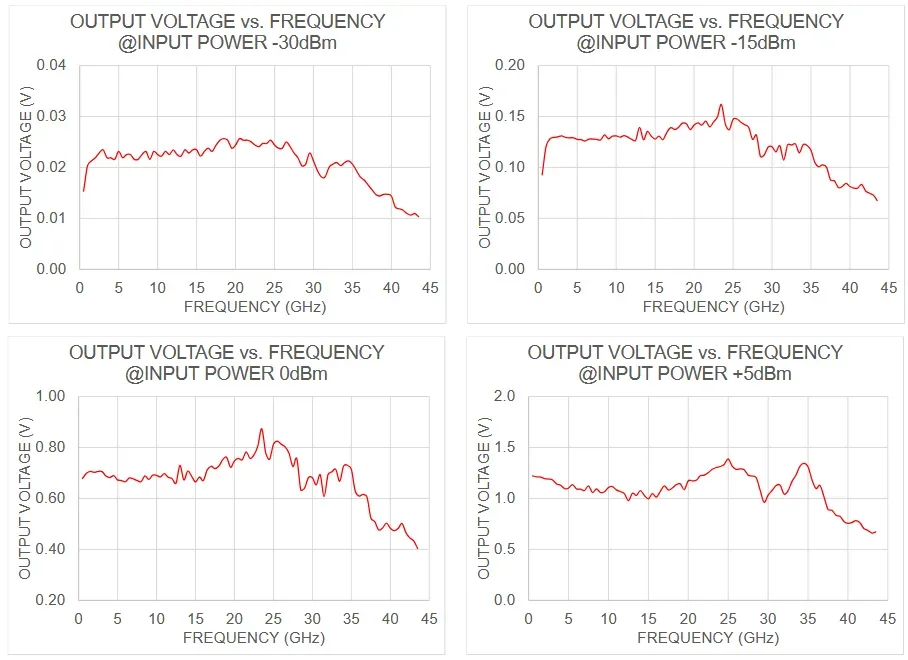

• Output Voltage Range: 0 – 4.3 V

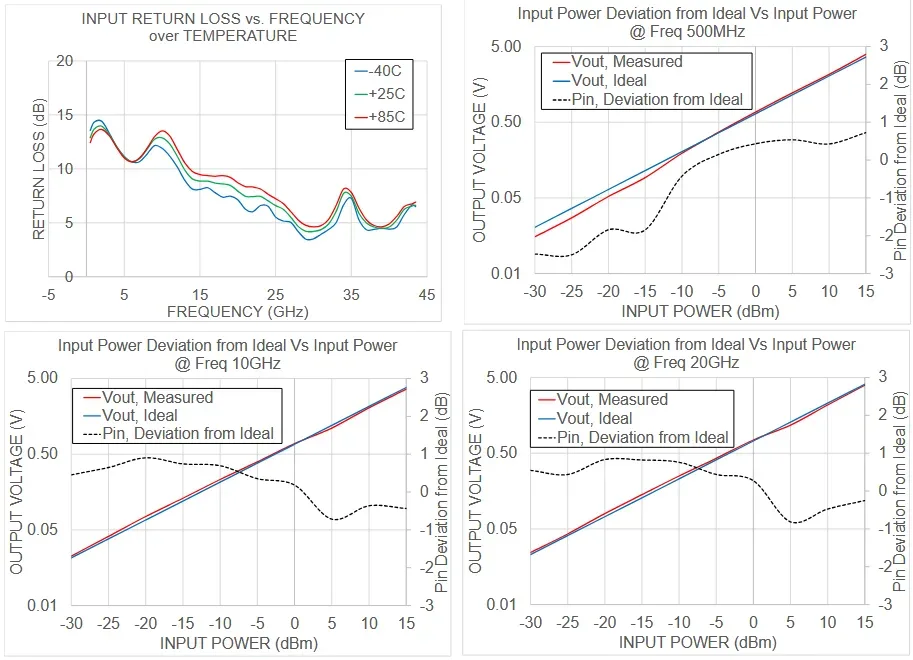

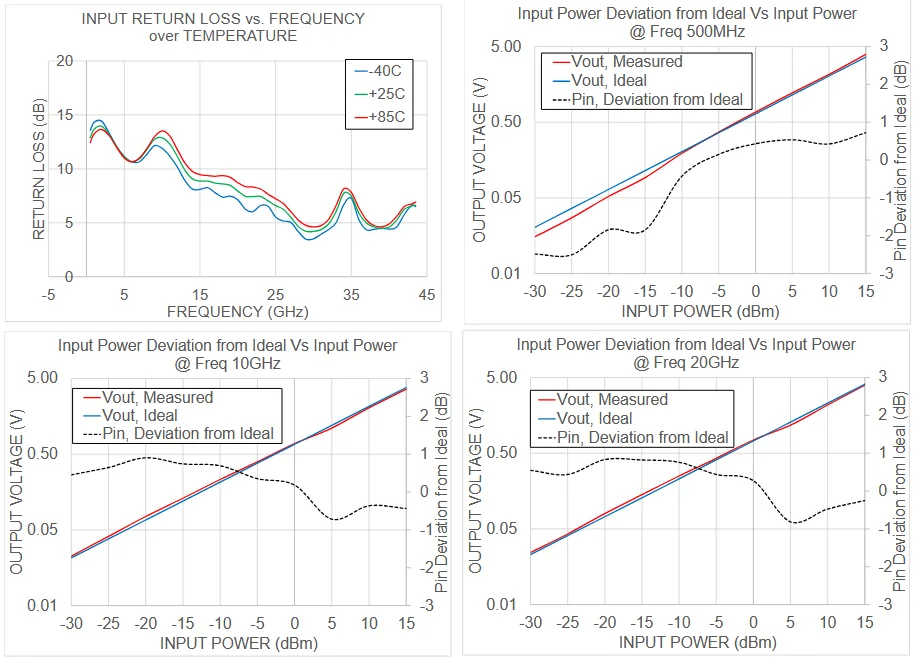

• VSWR: 2.4:1
• DC Operating Power Vcc: 4.75 – 5.25 V
