RF Isolator / 3 – 6 GHz Isolator

Service Description

End Product + Design Documents + Production Documents

These RF isolators are available in both single- and dual-junction configurations and utilize magnetic shunts made from nickel-plated cold-rolled steel. Designed to perform at frequencies starting as low as 0.40 GHz for one variant and 2.60 GHz for another, they offer versatility across a wide range of applications.

Multiple connector types are supported, and the isolators are housed in brass bodies to ensure durability and stable performance. Specifically engineered for advanced environments such as quantum computing and space systems, these components are capable of operating reliably at cryogenic temperatures.

Specifications

• Frequency Range (GHz): 3-6
• Isolation (dB): 18
• Insertion Loss (dB): 0.4

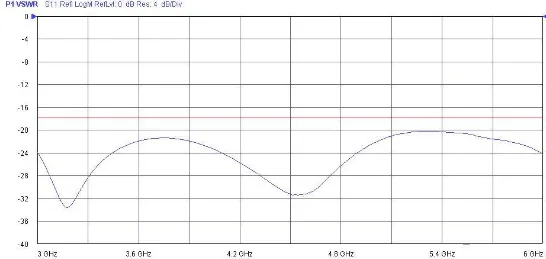

• VSWR: 1.3:1
• Forward Power (W): 20
• Reflective Power (W): 2

Mechanical

• Connector Type: SMA
• Connector Body: Passivated Stainless Steel
• Connector Pin: Gold plated copper
• Load Body: Brass
• Magnetic Shunt: Nickel Plated CRS
• Weight (oz): 2
