A/B Coaxial Electromechanical Relay Switch

Service Description

End Product

Streamline your signal routing with this high-precision A/B coaxial electromechanical relay switch. Designed for seamless transitions between RF paths, this component provides a reliable 50 Ohm connection for critical communication and testing applications operating up to 1 GHz.

Core Specifications

• Switch Type: A/B Coaxial (Non-latching)
• Switching Sequence: Break Before Make
• Operational Range: DC to 1,000 MHz
• Nominal Impedance: 50 Ohm
• Control Voltage: 12 Vdc
• RF Connectors: N Female
• Control Connector: Solder Pin

Product Overview

Engineered for professionals requiring dependable signal switching, this electromechanical relay offers a robust solution for managing RF paths. Its internal assembly features precision impedance matching networks and a mechanical relay module, ensuring minimal signal degradation even at its maximum frequency rating.

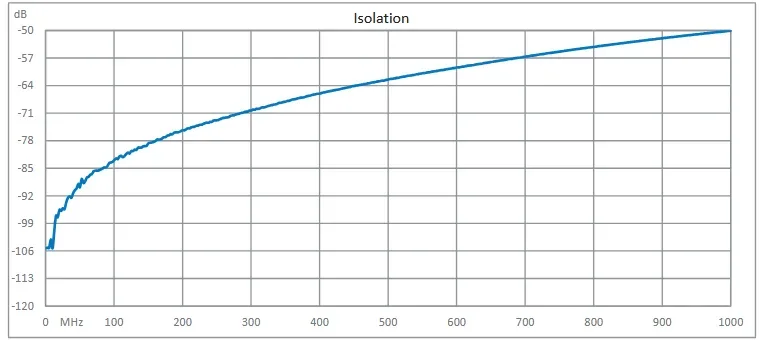

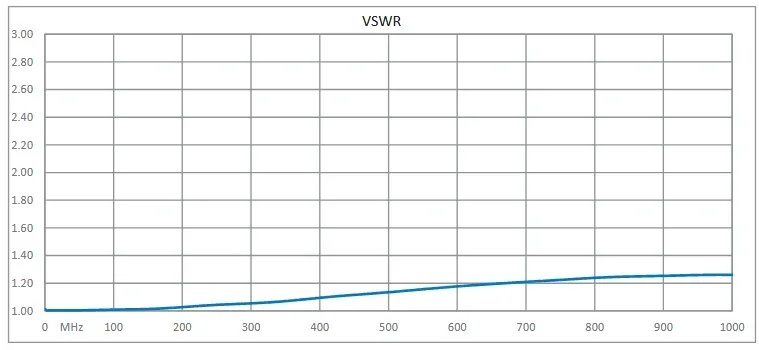

• Exceptional Signal Isolation: Features a minimum isolation of 50 dB (62 dB typical) to prevent crosstalk and maintain signal purity.
• Low Insertion Loss: Optimized for performance with a typical insertion loss of only 0.3 dB, ensuring maximum power transfer.
• Rapid Switching Performance: Engineered with a 15ms switching speed to support time-sensitive laboratory and industrial operations.
• Thermal Stability: Reliable operation across a broad temperature range from -20°C to +60°C.

Ideal For:

• Laboratory test and measurement (VNA/Spectrum Analysis).
• Wired and wireless communication systems.
• Industrial instrumentation and multiplex transmission.
• Aerospace and entertainment equipment signal routing.

Logistics & Quality: Produced in a quality-certified facility, this relay switch is part of an extensive inventory of high-performance microwave components. All units are tested to meet rigorous electrical specifications and are ready for immediate dispatch. Orders are processed for same-day global shipping to ensure your project stays on schedule.
