3D Radar Transceiver Module with Integrated Signal Processing

Service Description

End Product

This advanced 3D radar transceiver module features built-in signal processing and tracking capabilities, capable of detecting both moving and stationary objects. It measures speed, direction, distance, and angular position (azimuth and elevation).

Equipped with a radar front end comprising 3 transmit and 4 receive patch antennas, the unit includes a high-performance FPGA for on-board signal processing. The device supports Ethernet for configuration and data readout, along with two configurable digital outputs suited for applications such as collision avoidance or area monitoring.

Its digital architecture and wide input voltage range make the module well-suited for integration in both standalone and microcontroller-based systems. Sensor data can be accessed at various stages of the processing chain, allowing flexibility for integration across different platforms.

Housed in an IP65-rated enclosure with M12 connectors, this radar transceiver is designed for reliable operation in challenging environments, offering ready-to-use capabilities without the need for custom signal processing development.

Features

– 61 GHz 3D FMCW radar with digital signal processing
– Measures speed, direction, distance and angle of multiple static or moving objects
– Typical detection distance: 30 m for persons / 80 m for cars
– Target list output over 100BASE-T Ethernet
– Integrated range Doppler processing with tracking
– 2 configurable digital outputs with overcurrent protection
– Wide power supply range from 8 to 32V
– 3 TX and 4 RX patch antennas with 60°/36° beam aperture
– Rugged water-proof housing with M12 connectors for harsh conditions

Operating Conditions

• Supply voltage: 12/24V
• Peak Current: 600mA
• Operating Temperature: -20 and +85 °C

Transmitter

• Transmitter frequency: 60 – 64 GHz
• Output Power: 15 – 20 dBm
• Frequency Stability: 50ppm
• Phase Noise: -80 dBc
• Spurious emissions: -30 dBm

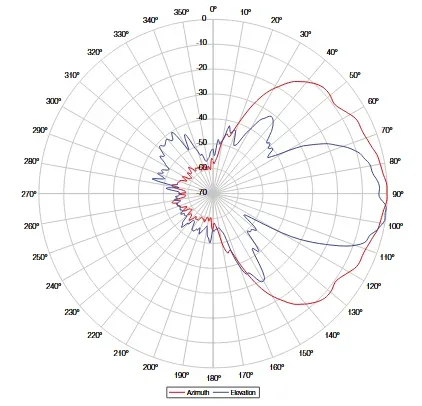

Antenna

• Polarisation: Vertical
• TX antenna gain: 9.5 dBi
• TX horizontal -3dB beamwidth: 60°
• TX vertical -3dB beamwidth: 36°
• RX antenna gain: 9.5 dBi
• RX horizontal -3dB beamwidth: 60°
• RX vertical -3dB beamwidth: 36°
• RX horizontal spacing: 2.464mm
• RX vertical spacin: 2.464mm
• Receiver sensitivity: -141dBm
• Overall sensitivity: -144dBc

Signal Processing

• Modulation: FMCW
• Speed range: 0.1 – 100 km/h
• Speed resolution: 0.3 – 3.1 km/h
• Distance range: 0.3 – 100 m
• Distance resolution: 4.7 – 78.2 cm
• Angular resolution: 1°
• Number of raw targets: 0 – 150
• Update rate: 130ms

Body

• Outline dimensions: 76 × 56 × 27.6 mm3
• Weight: 112 g
• Connector: 2 × 4pin M12
• Rating case: IP-65
