WR-28 Straight Waveguide

Service Description

End Product + Design Documents + Production Documents

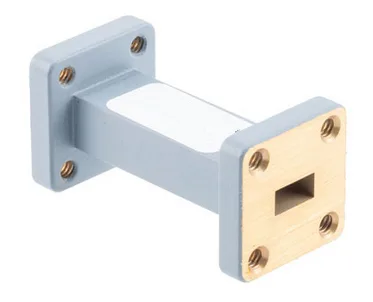

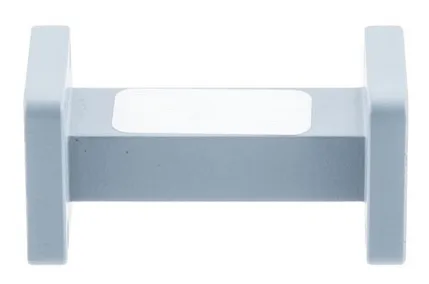

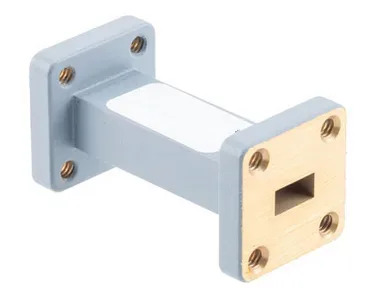

This WR-28 straight waveguide section is designed for use in millimeter-wave systems operating from 26.5 GHz to 40 GHz. The waveguide section has a length of 1.5 inches and features square cover UG-599/U flanges on both the input and output for secure and standardized connections.

With a maximum VSWR of 1.1:1, this waveguide section ensures minimal reflection and efficient signal transmission across its operating band. Ideal for high-frequency signal routing in radar systems, communication test setups, and scientific research, it delivers consistent and reliable performance.

Part of a wide selection of waveguide components, this precision-machined straight waveguide section supports immediate integration into your existing waveguide infrastructure.

Features

• WR-28 Waveguide Section
• UG-599/U Square Cover Flanges
• Frequency Range 26.5 GHz to 40 GHz
• 1.5 Inch Length
• Maximum VSWR: 1.1:1
• Frequency Range: 26.5 – 40 GHz
• VSWR: 1.1:1
• Insertion Loss Max.: 0.2 dB
• Waveguide Size: WR-28
• Waveguide Design: Standard

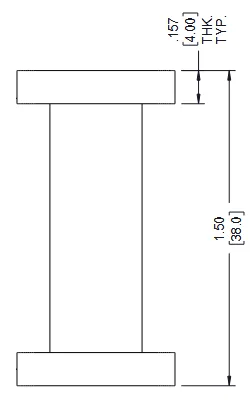

• Section Length: 1.5 in [38.1 mm]

This WR-28 straight waveguide section features a 1.5-inch length and is constructed from durable aluminum. It operates across the 26.5 GHz to 40 GHz frequency range and includes UG-599/U square cover flanges for standardized connectivity.

Engineered for reliable performance in RF, microwave, and millimeter-wave systems, this waveguide section is ideal for use in high-frequency applications such as communications, radar, and test setups. Its compact size and precision design make it suitable for both lab environments and field installations.

With industry-leading availability and global shipping support, this component is part of a comprehensive inventory of waveguide products, designed to meet the demands of professional and industrial users.
