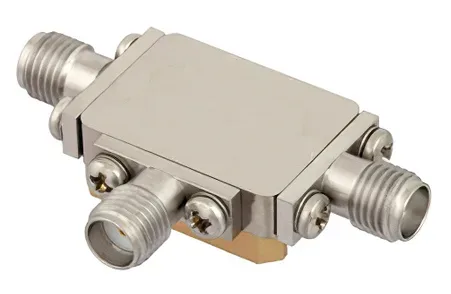

Triple Balanced Mixer – 6GHz to 18GHz

Service Description

End Product + Design Documents + Production Documents

This RF double balanced mixer (also known as a frequency mixer) features SMA connectors and operates with a 50 Ohm impedance. It supports a wide RF and LO frequency range from 6 GHz to 18 GHz, with an IF frequency range of 1.5 GHz to 8 GHz.

Engineered for robust performance, this double balanced mixer provides an RF to LO isolation of 20 dB and is rated for a third-order intercept point (IP3) of +14 dBm. The balanced design offers improved port-to-port isolation and excellent linearity, making it well-suited for upconversion and downconversion in RF and microwave systems.

This compact and rugged mixer is ideal for applications in communication systems, test equipment, and radar. It is available from stock and can be shipped the same day for both domestic and international orders.

• RF Frequency Range: 6 – 18 GHz
• LO Frequency Range: 6 – 18 GHz
• IF Frequency Range: 1.5 – 8 GHz
• Impedance: 50 Ohms
• Conversion Loss: 7 – 9 dB
• LO to RF Isolation: 20 – 27 dB
• LO to IF Isolation: 20 – 25 dB
• Input at 1dB Compression Point: +4 dBm
• Input at 3rd Order Intercept Point: +14 dBm
• LO Input Power: +10 – +13 dBm
• Input Power (CW): 0.35 Watts
• Input Power (Peak): 0.5 Watts
• Input Current (Peak): 0.25 Amps

• Length: 1.55 in [39.37 mm]
• Width: 0.31 in [7.87 mm]
• Height: 0.965 in [24.51 mm].
• Weight: 0.041 lbs [18.6 g]
• Housing Material and Plating: Passivated Stainless Steel
• Design: Triple Balanced
• Package Type: Connectorized
• RF Connector: SMA Female
• LO Connector: SMA Female
• IF Connector: SMA Female

This triple balanced mixer operates across an RF and LO frequency range of 6 GHz to 18 GHz, with an intermediate frequency (IF) range from 1.5 GHz to 8 GHz. It is designed to handle a local oscillator (LO) input power of +10 dBm and utilizes SMA connectors for easy integration into RF systems.

Triple balanced mixer architecture offers superior port-to-port isolation, excellent suppression of unwanted mixing products, and enhanced linearity compared to single or double balanced designs. It is ideal for high-performance applications such as upconversion and downconversion in radar, communications, and test systems.

The mixer is available in a compact, rugged package and supports reliable operation across demanding RF environments. This product is part of a broad portfolio of RF and microwave components that are typically available for same-day shipment worldwide.
