Double Balanced Mixer – 5 MHz to 1 GHz

Service Description

End Product + Design Documents + Production Documents

This broadband double balanced mixer supports RF and LO input frequencies from 5 MHz to 1000 MHz, with an IF output range extending from DC to 1000 MHz. It operates with an LO drive level between +4 dBm and +10 dBm, with a nominal level of +7 dBm.

Engineered with a Schottky ring quad diode configuration and optimized balun structures, the design delivers excellent performance. Typical specifications include a 7 dB conversion loss, isolation levels of up to 62 dB between RF to LO and LO to IF, and a high input IP3 of +20 dBm.

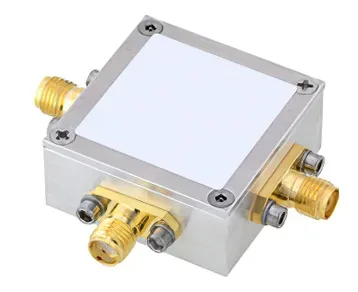

The 50-ohm hybrid module is fully self-contained, requiring no external matching or additional components. Housed in a compact and rugged enclosure with SMA female connectors, the mixer is built for durability. It functions reliably in demanding environments, with an operational temperature range of -40°C to +85°C and compliance with MIL-STD-202 environmental standards for humidity, shock, vibration, and altitude.

Features

• Broadband Double Balanced Mixer Design
• LO & RF Frequency Range: 5 MHz to 1000 MHz
• IF Frequency Range: DC to 1000 MHz
• LO Drive Level Range: +4 dBm to +10 dBm
• Schottky Ring Quad Diodes with Optimized Balun Structures
• Conversion Loss: 7 dB typ
• High Port Isolations up to 62 dB typ
• High Input IP3 Level: +20 dBm
• RF Input Up to +1 dBm
• SMA Connectors
• Operating Temperature Range: -40°C to +85°C
• Designed to Meet MIL-STD-202 Environmental Test Conditions

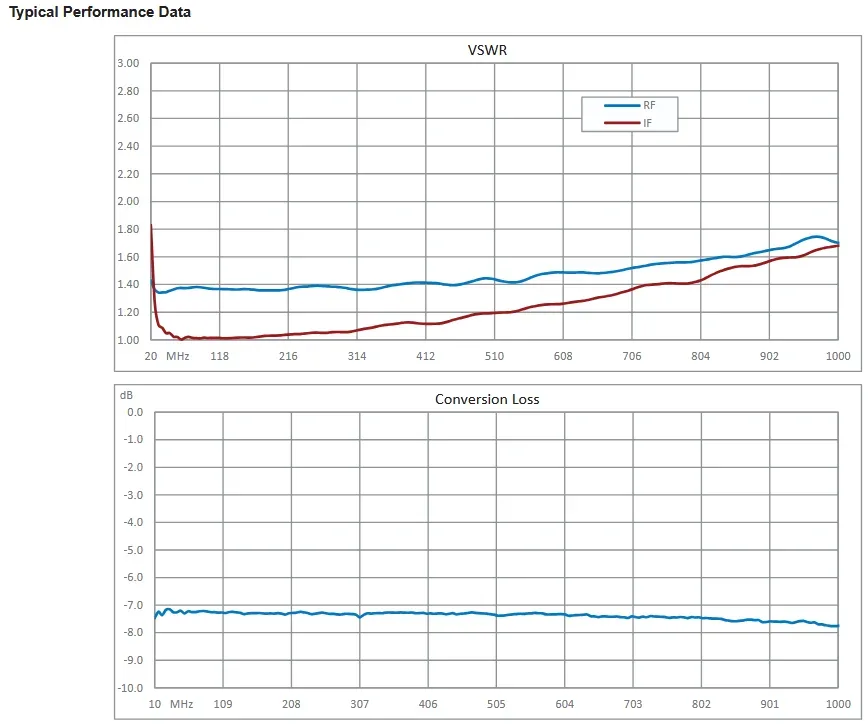

Specifications

• RF Frequency Range: 5 – 1,000 MHz
• LO Frequency Range 5 – 1,000 MHz
• IF Frequency Range: DC – 1,000 MHz
• Impedance: 50 Ohms
• Conversion Loss: 7 – 8.5 dB

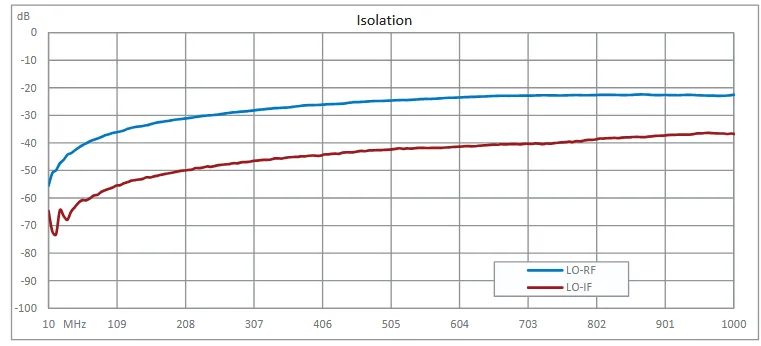

• LO to RF Isolation: 22 – 47 dB
• LO to IF Isolation: 20 – 45 dB
• RF Port VSWR: 1.5:1 – 2.5:1
• IF Port VSWR: 1.5:1 – 2.5:1
• Input at IP3: +17 – +20 dBm
• RF Input Power: +1 dBm
• LO Input Power: +7 dBm
• RF Power: +17 dBm
• Peak IF Current: 40 mA

Size

• Length: 1.25 in [31.75 mm]
• Width: 0.563 in [14.3 mm]
• Height: 0.563 in [14.3 mm]
• Weight: 0.0967 lbs [43.86 g]
