Mixer – DC to 8 GHz – 24 GHz to 32 GHz – +13 dBm

Service Description

End Product

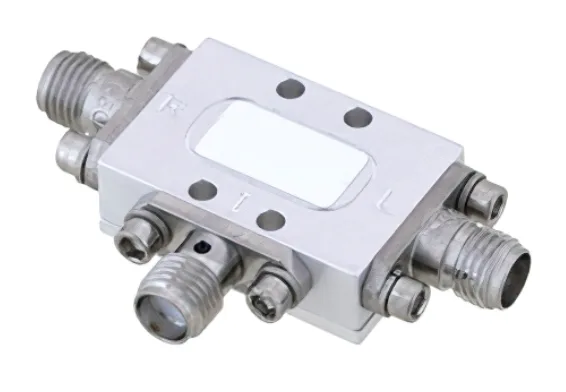

This broadband double balanced mixer operates across an RF and LO frequency range of 24 GHz to 32 GHz, with an IF frequency range from DC to 8 GHz and a nominal LO drive level of +13 dBm. Built using advanced MMIC technology, it offers excellent performance including a typical conversion loss of 10.5 dB, RF to LO and LO to IF isolation up to 40 dB, and an input IP3 of +18 dBm. The 50-ohm hybrid module requires no external components or matching circuitry. It features 2.92mm female connectors on the RF and LO ports, and an SMA female connector on the IF port. The unit operates in a temperature range of -40°C to +85°C and is designed to meet MIL-STD-202 standards for humidity, shock, vibration, and altitude to ensure high reliability.

Features

• Double balanced mixer design
• LO & RF frequency range: 24 GHz to 32 GHz
• IF frequency range: DC to 8 GHz
• LO drive level: +13 dBm
• Based on advanced MMIC technology
• Typical conversion loss: 10.5 dB
• Typical port isolations up to 40 dB
• Input IP3 level: +18 dBm
• RF input P1dB: +13 dBm
• RF/LO connectors: 2.92mm female
• IF connector: SMA female
• Operating temperature range: -40°C to +85°C
• Compliant with MIL-STD-202 environmental test conditions

Specifications

• RF Frequency Range: 24–32 GHz
• LO Frequency Range: 24–32 GHz
• IF Frequency Range: DC–8 GHz
• Impedance: 50 Ohms

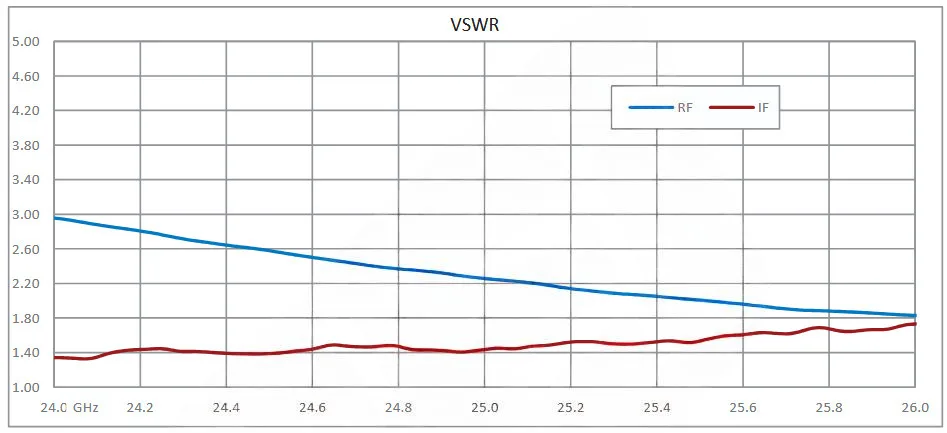

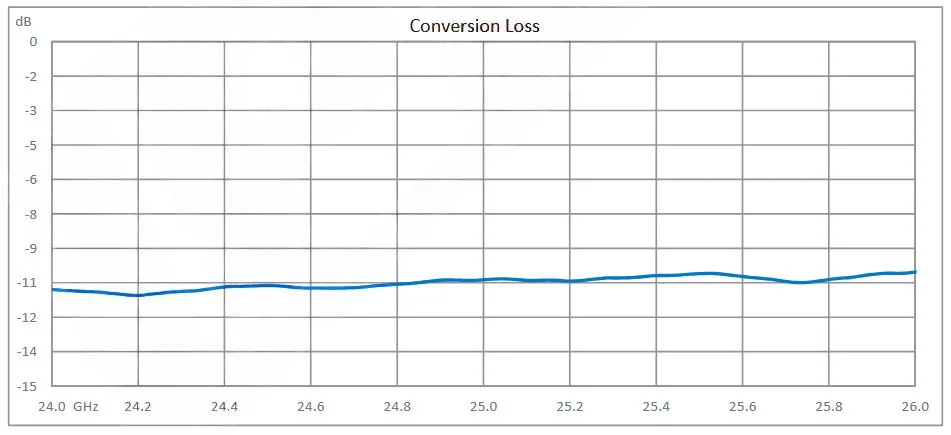

• Conversion Loss: 10.5–12.5 dB

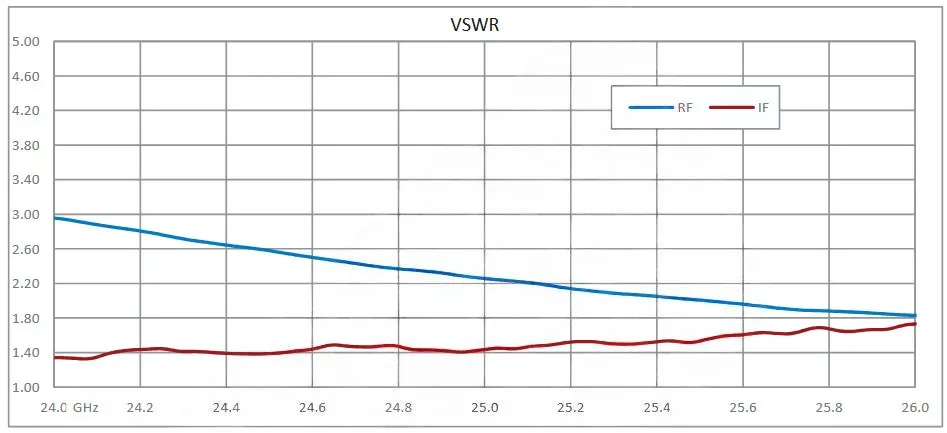

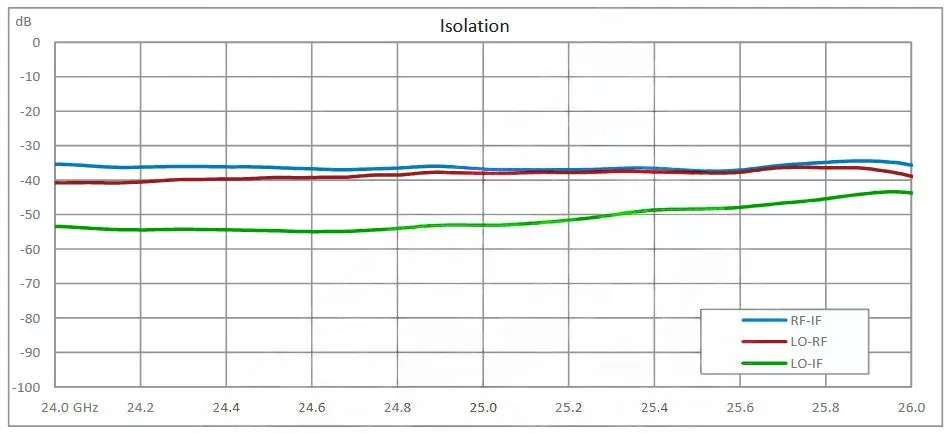

• LO to RF Isolation: 32–38 dB
• LO to IF Isolation: 20–40 dB
• RF to IF Isolation: 20–30 dB
• Input P1dB: +13 dBm
• Input IP2: +40 dBm
• Input IP3: +18 dBm
• LO Input Power: +13 dBm
• RF/IF Power: +13 dBm
• LO Drive Level: +27 dBm
• Operating Temperature: -40 to +85 °C
• Storage Temperature: -65 to +150 °C
• Design: Double Balanced
• Package Type: Connectorized
• RF Connector: 2.92mm Female
• LO Connector: 2.92mm Female
• IF Connector: SMA Female

Double Balanced Mixer operating from 24 GHz to 32 GHz with an IF range from DC to 8 GHz and LO power of +13 dBm, 2.92mm connectors, available for same-day shipment for domestic and international orders. This RF, microwave, and millimeter wave component is part of one of the industry’s broadest in-stock selections with 99.4% availability.
